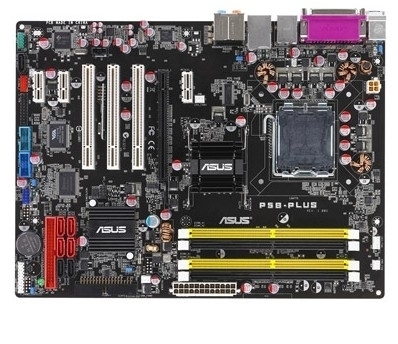

ASUS P5B-Plus Vista Edition
Model P5B-Plus Vista EditionPart no. 90-MBB5W0-G0EAY00ZEAN 610839149193
38 specifications
- Processor manufacturerIntel
- ECC сompatibilityNon-ECC
- RAID levels0, 1, 10
- USB 2.0 connectors2
- USB 2.0 ports quantity4
- Networking featuresGigabit Ethernet
Overview
- Processor manufacturer
- Intel
- ECC сompatibility
- Non-ECC
- RAID levels
- 0, 1, 10
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Networking features
- Gigabit Ethernet
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5B-Plus Vista Edition
- Part numbers
- 90-MBB5W0-G0EAY00Z, P5B-PLUS VISTA EDITION, 90-MBB5W5-G0AAY00Z
- EAN / UPC
- 610839149193, 4719543149195
- Also known as
- ASUS P5B-Plus Vista Edition LGA 775 (Socket T) ATX
Specifications
38 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| ECC сompatibility | Non-ECC |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
| Overclocking features | SFS ASUS C.P.R. |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI-E x16 3x PCI-E x1 3x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 228.6 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS PC Probe II ASUS Update ASUS AI Suite Anti Virus (OEM) |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100/66 |
| Controller interface type | Serial ATA I/II |
| Floppy disk drive connector | Yes |
| Special features | ASUS MyLogo 2 ASUS AI Gear ASUS Q-Fan 2 |
