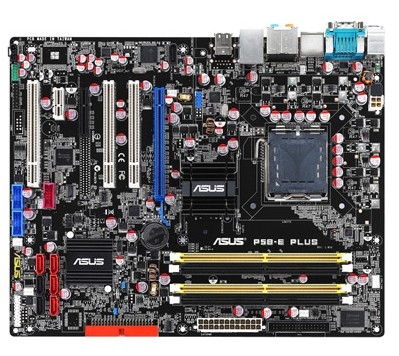

ASUS P5B-E Plus
Model P5B-E PlusPart no. P5B-E/PLUSEAN 610839145232
42 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors3
- Networking featuresGigabit Ethernet
- Motherboard form factorATX
- BIOS memory size64 Mbit
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- ATX
- BIOS memory size
- 64 Mbit
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5B-E Plus
- Part number
- P5B-E/PLUS
- EAN / UPC
- 610839145232, 4719543145234
- Also known as
- ASUS P5B-E Plus LGA 775 (Socket T) ATX
Specifications
42 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 7 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD1988A |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI-E x16 1x PCI-E x4 1x PCI-E x1 3x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASUS PC Probe II ASUS Update ASUS AI Suite |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100/66 |
| Controller interface type | Serial ATA II |
| Azalia Digital Header (ADH) connector | 1 |
| Floppy disk drive connector | Yes |
| Special features | - ASUS AI Gear - ASUS AI Nap - ASUS Fanless Design - ASUS Q-Fan 2 - ASUS Q-Connector - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 |
| Manageability features | WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
