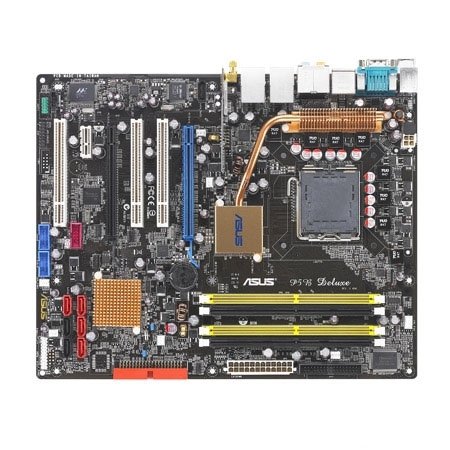

ASUS P5B Deluxe/WiFi-AP
Model P5B Deluxe/WiFi-APPart no. P5B DELUXE/WIFI-APEAN 610839138401
28 specifications
- Processor manufacturerIntel
- Maximum internal memory8 GB
- RAID levels0, 1, 10
- USB 2.0 connectors4
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Maximum internal memory
- 8 GB
- RAID levels
- 0, 1, 10
- USB 2.0 connectors
- 4
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5B Deluxe/WiFi-AP
- Part number
- P5B DELUXE/WIFI-AP
- EAN / UPC
- 610839138401
- Also known as
- ASUS P5B Deluxe/WiFi-AP LGA 775 (Socket T) ATX
Specifications
28 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 2 |
| VGA (D-Sub) ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| COM ports quantity | 1 |
| Modem (RJ-11) ports | 0 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Other features
| Specification | Value |
|---|---|
| Controller interface type | SATA II |
| Audio output | 192KHz/24-bit |
| Floppy disk drive connector | Yes |
