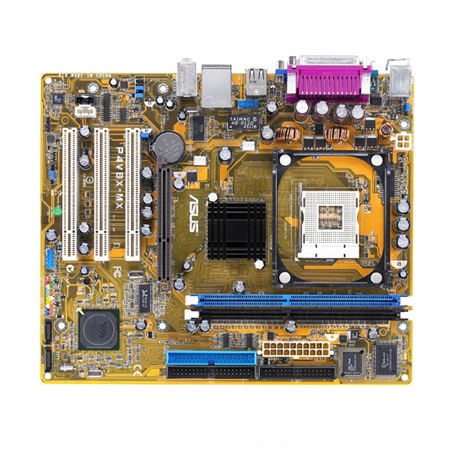

ASUS P4V8X-MX PE4 Socket478 FSB800 mATX
Model P4V8X-MX PE4 Socket478 FSB800 mATXPart no. 90-M8L1E0-G0EAYZ
36 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Parallel processing technology supportNot supported
- USB 2.0 ports quantity4
- Networking features10/100 Mbps LAN + VIA 6103 PHY
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Parallel processing technology support
- Not supported
- USB 2.0 ports quantity
- 4
- Networking features
- 10/100 Mbps LAN + VIA 6103 PHY
- Motherboard form factor
- micro ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P4V8X-MX PE4 Socket478 FSB800 mATX
- Part number
- 90-M8L1E0-G0EAYZ
- Also known as
- ASUS P4V8X-MX PE4 Socket478 FSB800 mATX VIA P4M800 micro ATX
Specifications
36 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 478 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100 Mbps LAN + VIA 6103 PHY |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | VIA P4M800 |
| Audio chip | C-Media CMI9761A |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP8X (1.5V only) 3 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 196 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASUS PC Probe anti-virus (OEM ver) ASUS LiveUpdate Utility |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Graphics controller | UniChrome Pro 3D / 2D Graphics & Video |
| Manageability features | WfM 2.0,DMI 2.0,WOL by PME,WOR by PME |
| RAID controller type | VIA 8237R PLUS |
