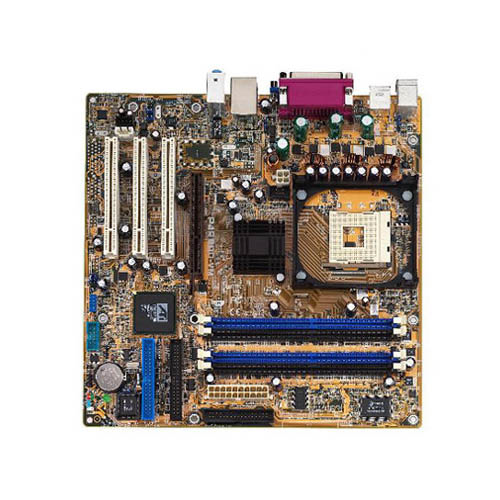

ASUS P4R800-VM motherboard Socket 478 micro ATX
Model P4R800-VMEAN 610839113644
48 specifications
- Processor manufacturerIntel
- Supported memory typesDDR-SDRAM
- Maximum graphics card memory128 MB
- USB 2.0 connectors1
- USB 2.0 ports quantity4
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR-SDRAM
- Maximum graphics card memory
- 128 MB
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 4
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Motherboard
- Model
- P4R800-VM
- Part number
- P4R800-VM
- EAN / UPC
- 610839113644
- Also known as
- ASUS P4R800-VM motherboard Socket 478 micro ATX
Specifications
48 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 478 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® 4 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 400 MHz |
| Maximum internal memory | 4 GB |
| Flash memory | 4 MB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 128 MB |
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Audio output channels | 5.1 channels |
| Cooling type | Passive |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 245 mm |
