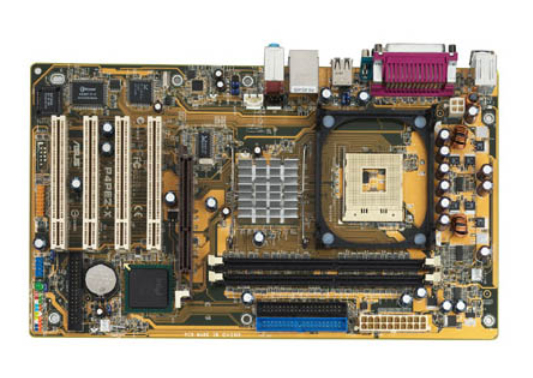

P4PE2-X motherboard Socket 478 ATX
Model P4PE2-X
45 specifications
- Processor manufacturerIntel
- Supported memory typesDDR-SDRAM
- Parallel processing technology supportNot supported
- USB 2.0 connectors1
- USB 2.0 ports quantity4
- Component forPC
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR-SDRAM
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 4
- Component for
- PC
- Brand
- ASUS
- Category
- Motherboard
- Model
- P4PE2-X
- Part number
- P4PE2-X
- Also known as
- ASUS P4PE2-X motherboard Socket 478 ATX
Specifications
45 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 478 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® 4 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR-SDRAM |
| Memory slots type | DIMM |
| Supported memory clock speeds | 2100,3200 MHz |
| Maximum internal memory | 2 GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek RTL8101L 10/100 Mbps LAN PCI controller |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 4 |
| Expansion slots | 1 x AGP 4X (1.5V only); 4 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 3 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 178 mm |
Other features
| Specification | Value |
|---|---|
| I/O ports | Back Panel I/O Ports: 1 x Parallel 1 x Serial 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x Audio I/O 1 x RJ45 1 x S/PDIF out Interface 4 x USB 2.0 Internal I/O Connectors: - 1 x USB 2.0 connector support additional 2 USB 2.0 ports - CPU / Chassis FAN connectors - Chassis Intrusion - 20-pin ATX Power connect |
