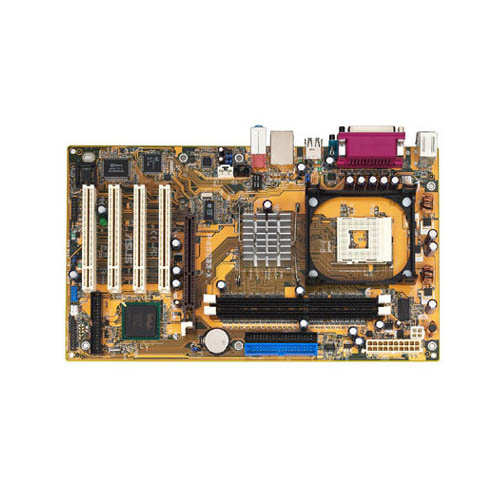

ASUS P4B533-X motherboard Socket 478 ATX
Model P4B533-X
39 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 connectors1
- USB 2.0 ports quantity4
- Networking featuresFast Ethernet
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 4
- Networking features
- Fast Ethernet
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P4B533-X
- Part number
- P4B533-X
- Also known as
- ASUS P4B533-X motherboard Socket 478 ATX
Specifications
39 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 478 |
| Compatible processor series | Intel® Celeron® |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 2 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| Number of Parallel ATA connectors | 2 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD1888 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 4 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 3 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 178 mm |
Other features
| Specification | Value |
|---|---|
| AGP x4 slots | 1 |
| GAME/MIDI connector | Yes |
| Special features | STR STD C.P.R. MyLogo EZ Flash CrashFree BIOS 2 |
