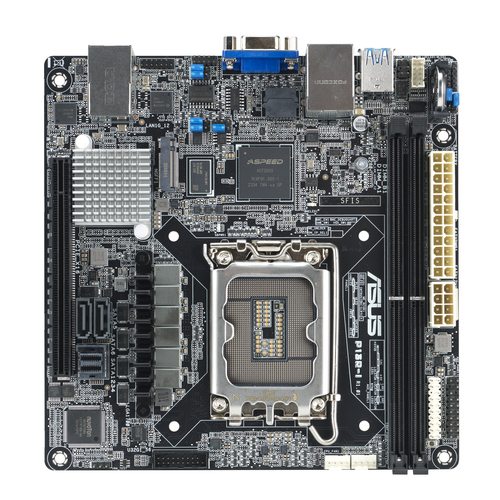

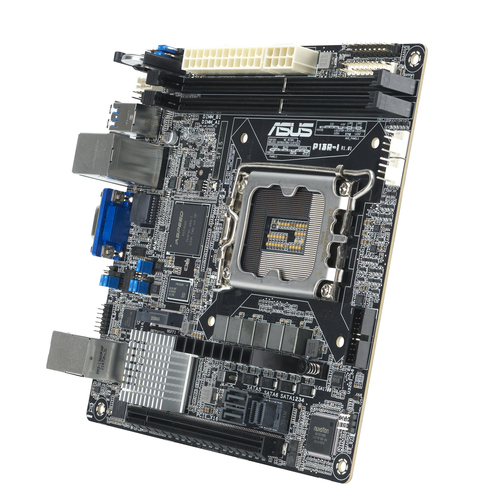

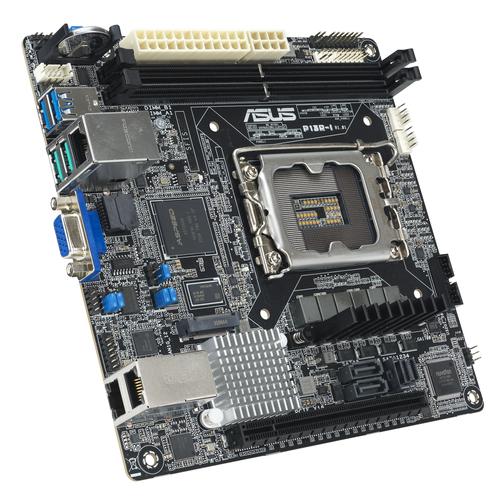

P13R-I Intel C262 LGA 1700 mini ITX
Model P13R-IPart no. 90SB0CR0-M0UAY1EAN 4711636232623
62 specifications
- SpeedNot available
- ColourBlack
- Processor manufacturerIntel
- Supported memory typesDDR5-SDRAM
- Supported storage drive typesHDD & SSD
- Parallel processing technology supportNot supported
Overview
- Speed
- Not available
- Colour
- Black
- Processor manufacturer
- Intel
- Supported memory types
- DDR5-SDRAM
- Supported storage drive types
- HDD & SSD
- Parallel processing technology support
- Not supported
- Brand
- ASUS
- Category
- Motherboard
- Model
- P13R-I
- Part numbers
- 90SB0CR0-M0UAY1, 90SB0CR0-M0UAY0
- EAN / UPC
- 4711636232623, 4711387372340
- Also known as
- ASUS P13R-I Intel C262 LGA 1700 mini ITX
Specifications
62 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Pentium®, Intel® Xeon®, Intel Xeon E |
| Supported processor sockets | LGA 1700 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 3600,4000,4400,4800 MHz |
| Supported memory clock speed (max) | 4800 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 4.0, SATA III |
| Number of HDDs supported | 6 |
| Number of storage drives supported | 7 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| Graphics card | AST2600 |
| On-board graphics card memory | 64 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Front panel connector | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |

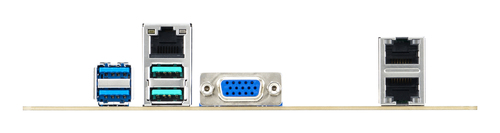

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C262 |
| Product colour | Black |
| Cooling type | Passive |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 341 mm |
| Package depth | 281 mm |
| Package height | 78 mm |
| Package weight | 1.2 kg |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
