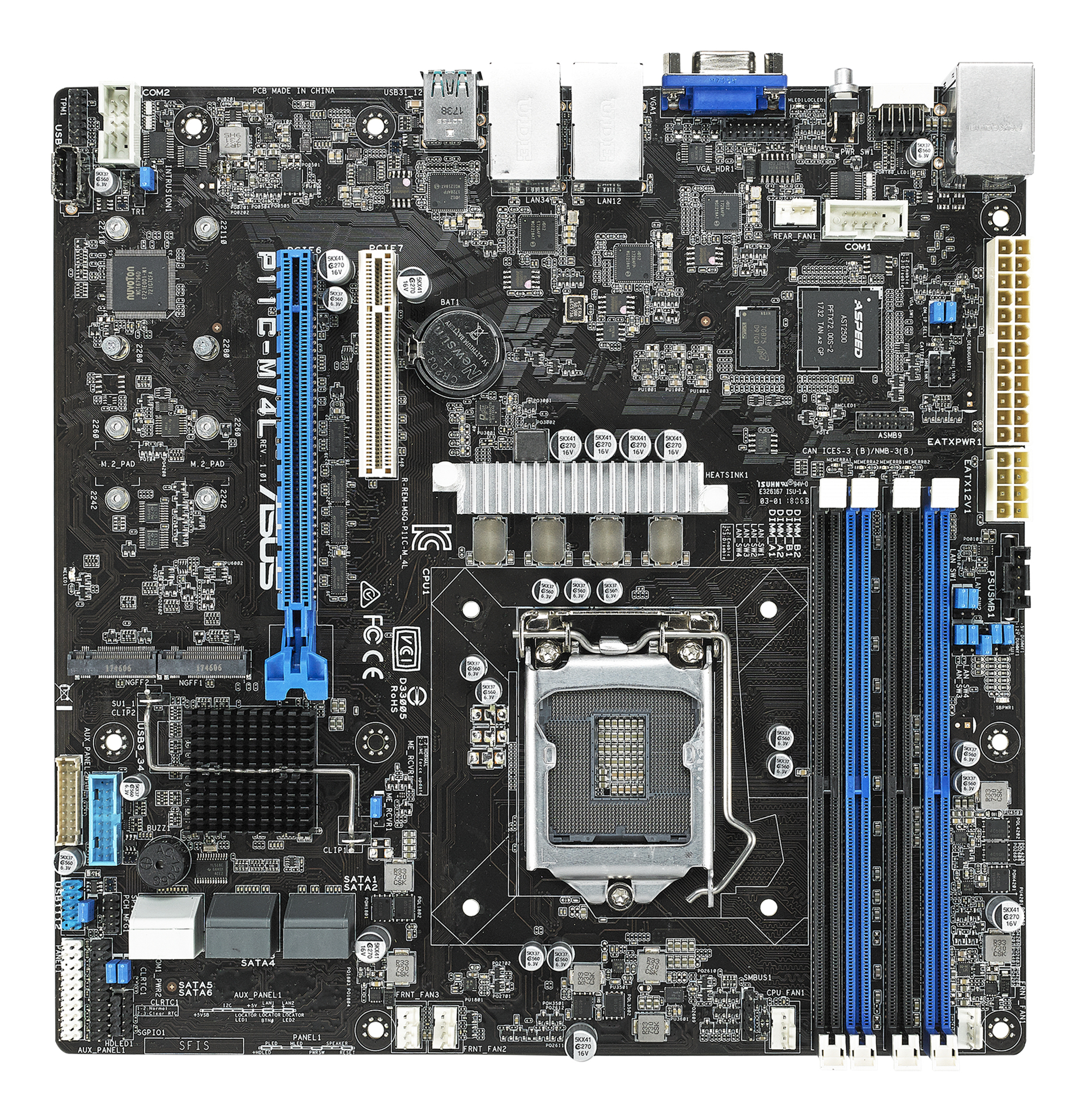

ASUS P11C-M/4L Intel C242 LGA 1151 (Socket H4) micro ATX

ASUS P11C-M/4L Intel C242 LGA 1151 (Socket H4) micro ATX

Model P11C-M/4LPart no. 90SB06R0-M0UAY0EAN 192876055458

47 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Graphics cardAST2500
  • USB 2.0 connectors1
  • USB 2.0 ports quantity0
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Graphics card
AST2500
USB 2.0 connectors
1
USB 2.0 ports quantity
0
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
P11C-M/4L
Part number
90SB06R0-M0UAY0
EAN / UPC
192876055458, 4718017055451
Also known as
ASUS P11C-M/4L Intel C242 LGA 1151 (Socket H4) micro ATX

Specifications

47 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2400,2666 MHz
Maximum internal memory64 GB

Graphics

Graphics cardAST2500

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
ATX Power connector (24-pin)Yes
Number of chassis fan connectors5
EPS power connector (8-pin)Yes

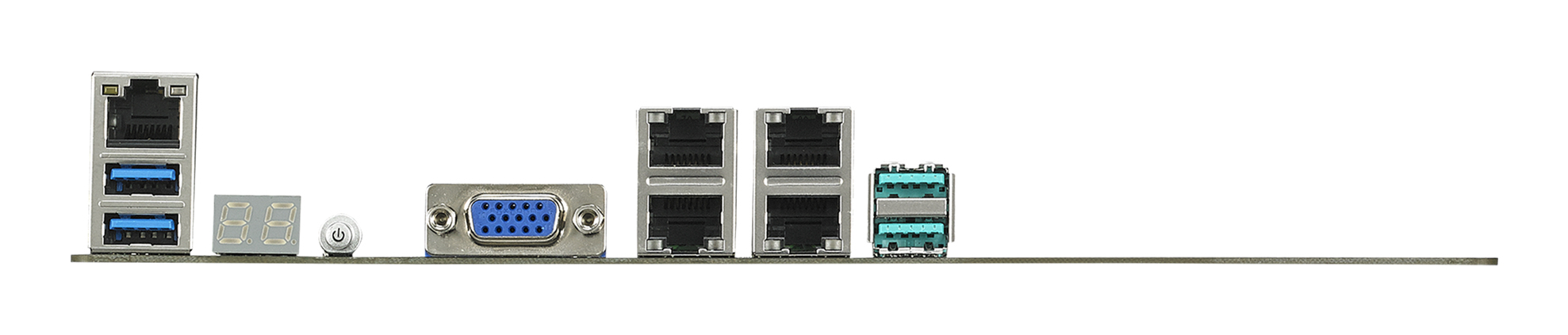

Rear panel I/O ports

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports4
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0

Network

Ethernet LANYes
LAN controllerIntel® I210-AT

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel C242

Expansion slots

PCI Express x8 slots1
PCI Express x16 slots1
Number of M.2 (M) slots2

Operational conditions

Storage temperature (T-T)10 - 35 °C
Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)20 - 90%

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width244 mm
Depth244 mm
