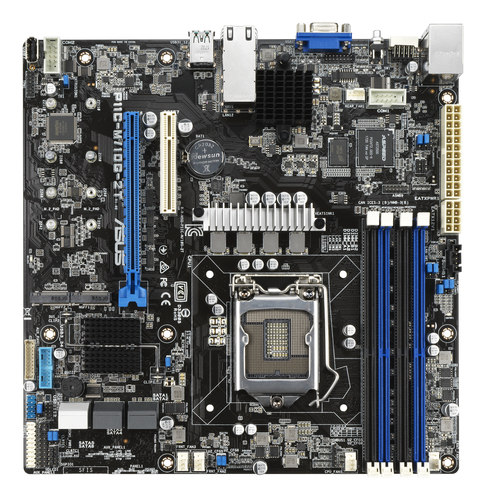

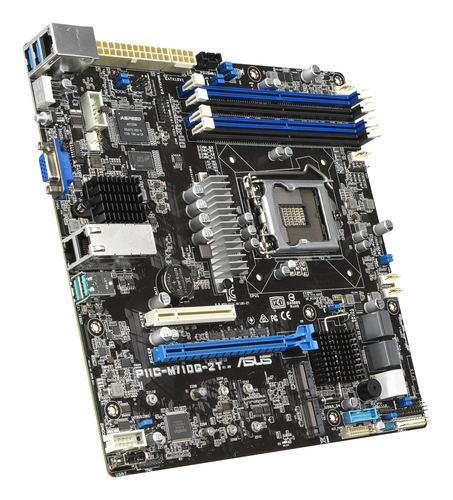

ASUS P11C-M/10G-2T Intel C242 LGA 1151 (Socket H4) Mini-ITX
Model P11C-M/10G-2TPart no. 90SB07J0-M0UAY0EAN 4718017284424
63 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- Parallel processing technology supportNot supported
- USB 2.0 connectors1
- USB 2.0 ports quantity0
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 0
- Brand
- ASUS
- Category
- Motherboard
- Model
- P11C-M/10G-2T
- Part number
- 90SB07J0-M0UAY0
- EAN / UPC
- 4718017284424
- Also known as
- ASUS P11C-M/10G-2T Intel C242 LGA 1151 (Socket H4) Mini-ITX
Specifications
63 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Xeon®, Intel Xeon E |
| Intel Xeon series | E-2200, E-2100 |
| Processor number of cores supported | 8 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2400,2666 MHz |
| Maximum internal memory | 64 GB |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 6 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| TPM connector | Yes |
| RGB LED pin header | Yes |

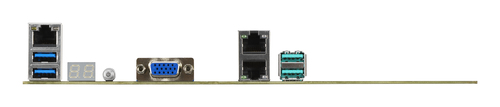

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 3 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | Mini-ITX |
| Motherboard chipset | Intel C242 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 7 |
| Number of M.2 (M) slots | 2 |
Processor special features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Other features
| Specification | Value |
|---|---|
| Number of DIMM slots | 4 |
| Number of processors supported | 1 |
What people say
Reviews & ratings
ASUS P11C-M/10G-2T Intel C242 LGA 1151 (Socket H4) Mini-ITX
No reviews yet
Be the first to tell others how ASUS P11C-M/10G-2T Intel C242 LGA 1151 (Socket H4) Mini-ITX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P11C-M/10G-2T Intel C242 LGA 1151 (Socket H4) Mini-ITX
All motherboard comparisons- ASUS P11C-M/10G-2T Intel C242 LGA 1151 (Socket H4) Mini-ITX vsASUS KRPA-U16 Socket SP3 SSI EEBCompare specs
- ASUS P11C-M/10G-2T Intel C242 LGA 1151 (Socket H4) Mini-ITX vsASUS PRIME A320M-KCompare specs

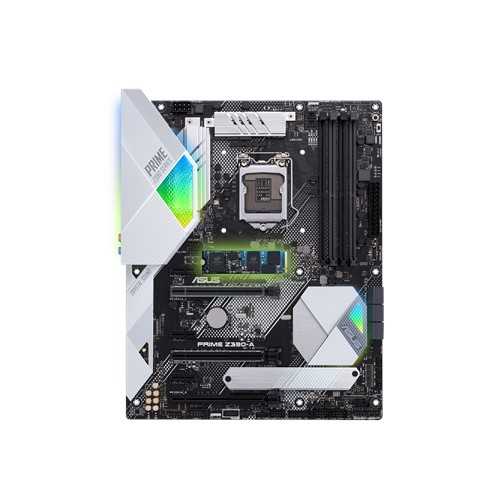

- ASUS P11C-M/10G-2T Intel C242 LGA 1151 (Socket H4) Mini-ITX vsASUS Prime Z390-A/H10Compare specs
- ASUS P11C-M/10G-2T Intel C242 LGA 1151 (Socket H4) Mini-ITX vsASUS Pro WS C246-ACECompare specs

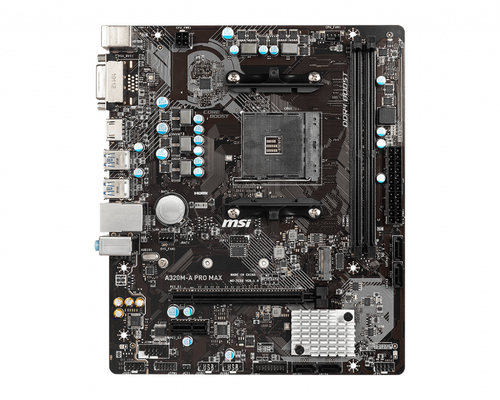

- ASUS P11C-M/10G-2T Intel C242 LGA 1151 (Socket H4) Mini-ITX vsMSI A320M-A PRO MAXCompare specs

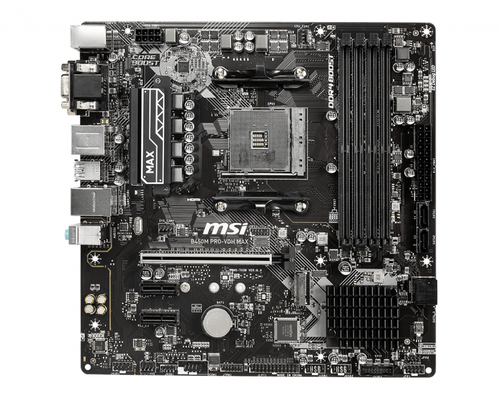

- ASUS P11C-M/10G-2T Intel C242 LGA 1151 (Socket H4) Mini-ITX vsMSI B450M PRO-VDH MaxCompare specs

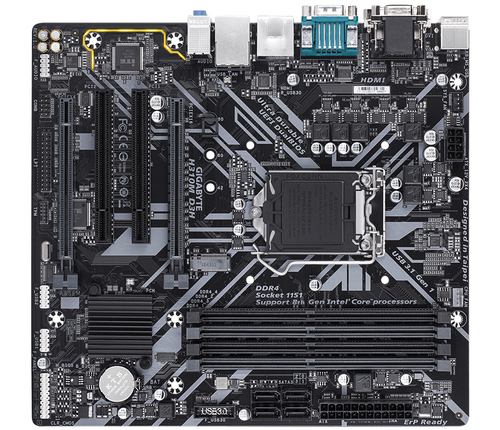

- ASUS P11C-M/10G-2T Intel C242 LGA 1151 (Socket H4) Mini-ITX vsGIGABYTE H310M D3HCompare specs
