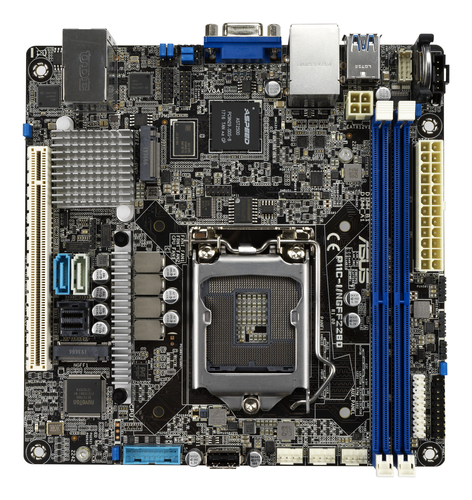

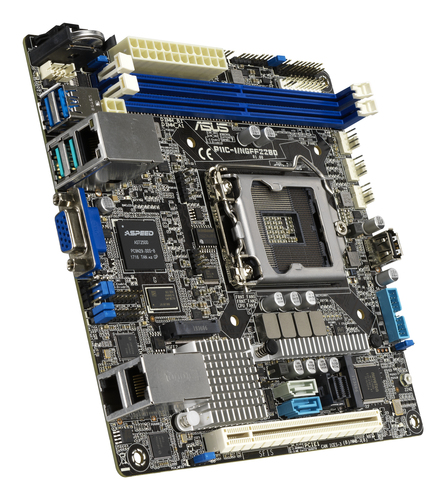

P11C-I/NGFF2280 Intel C242 LGA 1151 (Socket H4) mini ITX
Model P11C-I/NGFF2280Part no. 90SB0690-M0UAY0EAN 192876055465
50 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- On-board graphics cardYes
- USB 2.0 connectors1
- USB 2.0 ports quantity0
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- On-board graphics card
- Yes
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 0
- Brand
- ASUS
- Category
- Motherboard
- Model
- P11C-I/NGFF2280
- Part number
- 90SB0690-M0UAY0
- EAN / UPC
- 192876055465, 4718017055468
- Also known as
- ASUS P11C-I/NGFF2280 Intel C242 LGA 1151 (Socket H4) mini ITX
Specifications
50 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon®, Intel Xeon E |
| Intel Xeon series | E-2200, E-2100 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2400,2666 MHz |
| Maximum internal memory | 64 GB |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
| On-board graphics card memory | 32 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Serial port headers | 1 |
| TPM connector | Yes |

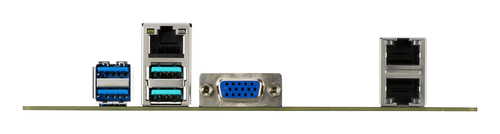

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C242 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.1 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
