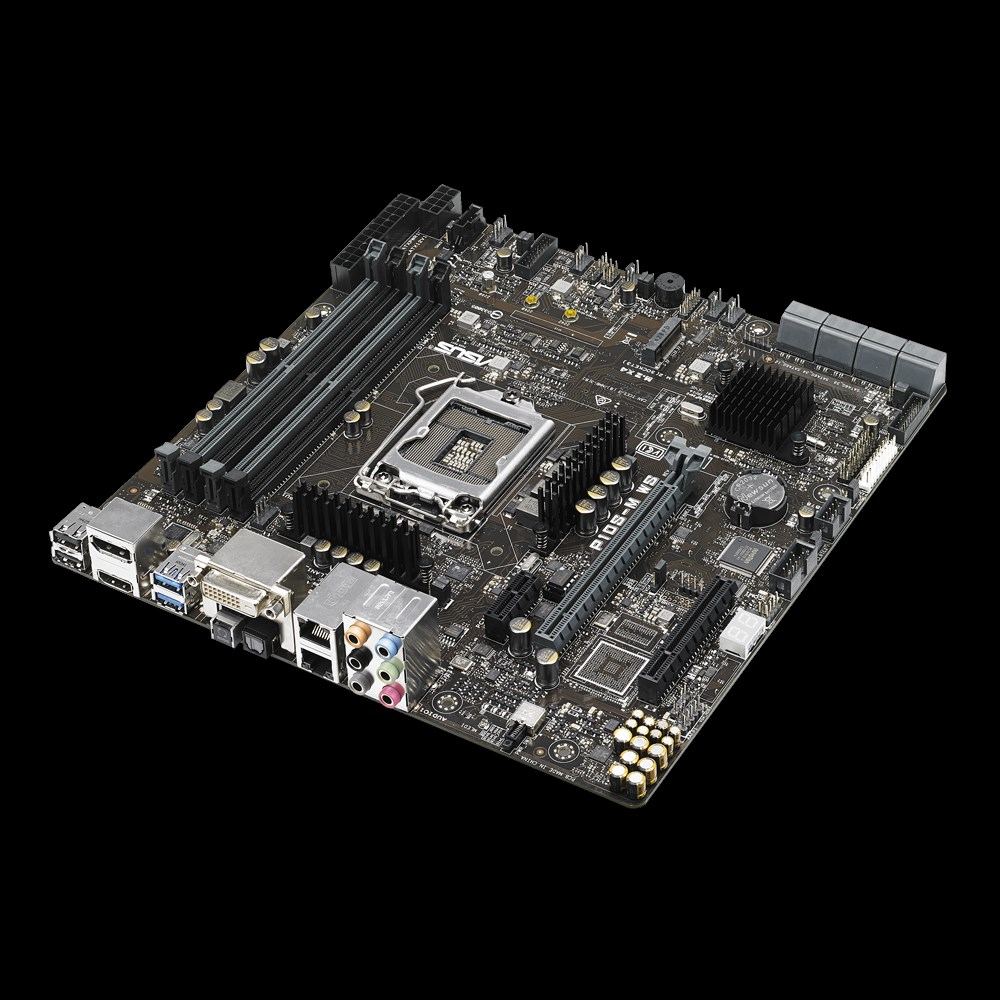

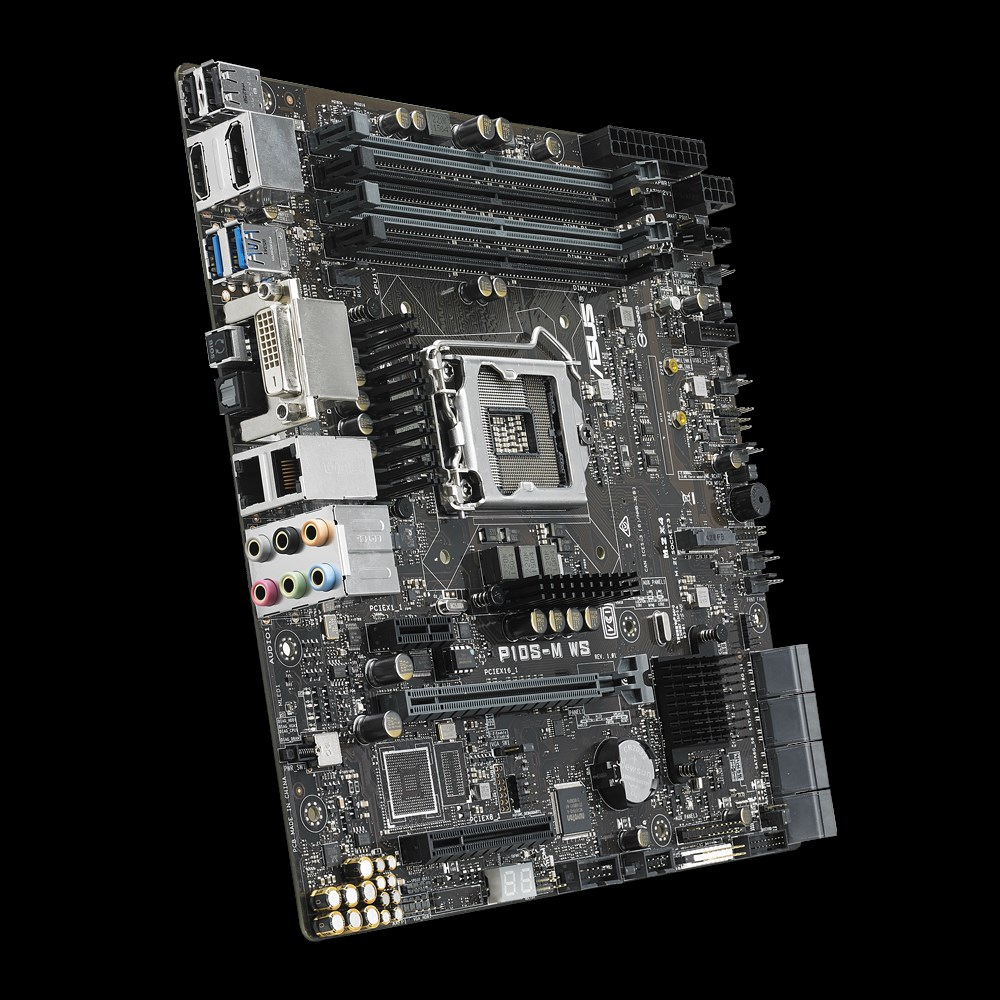

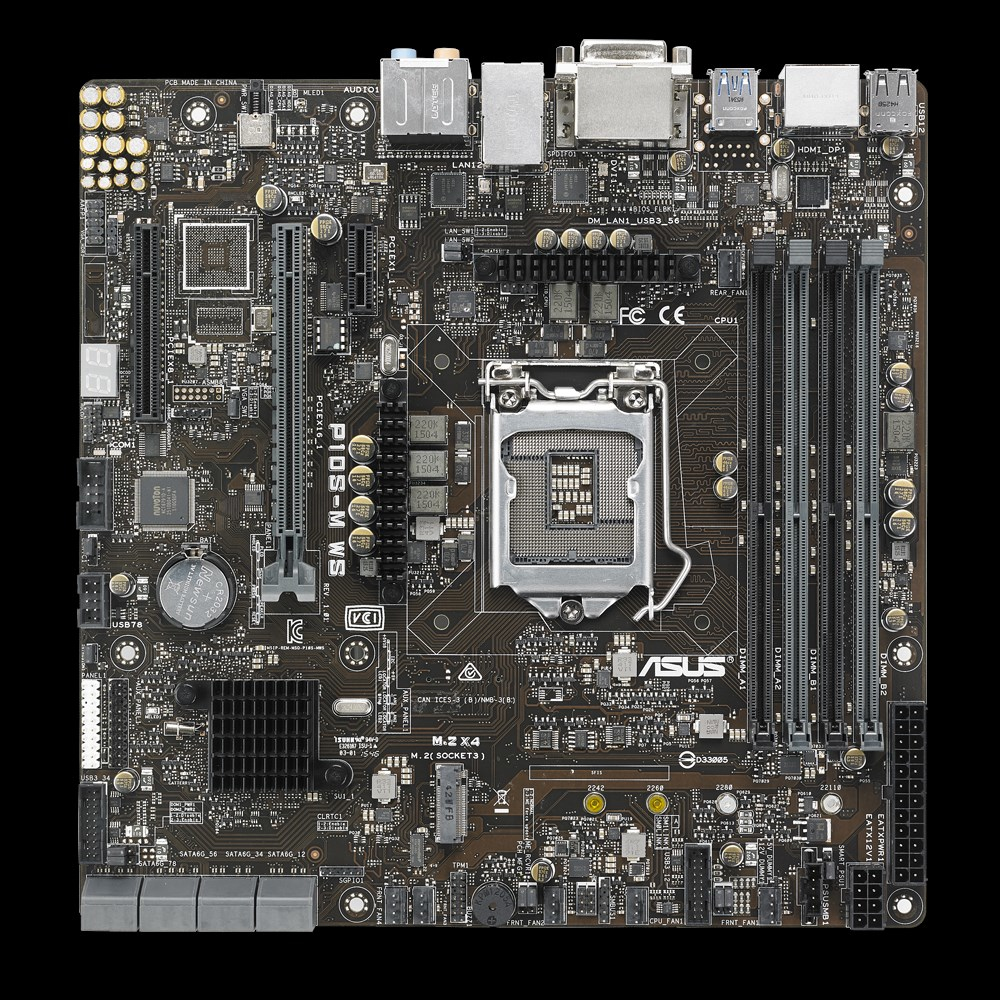

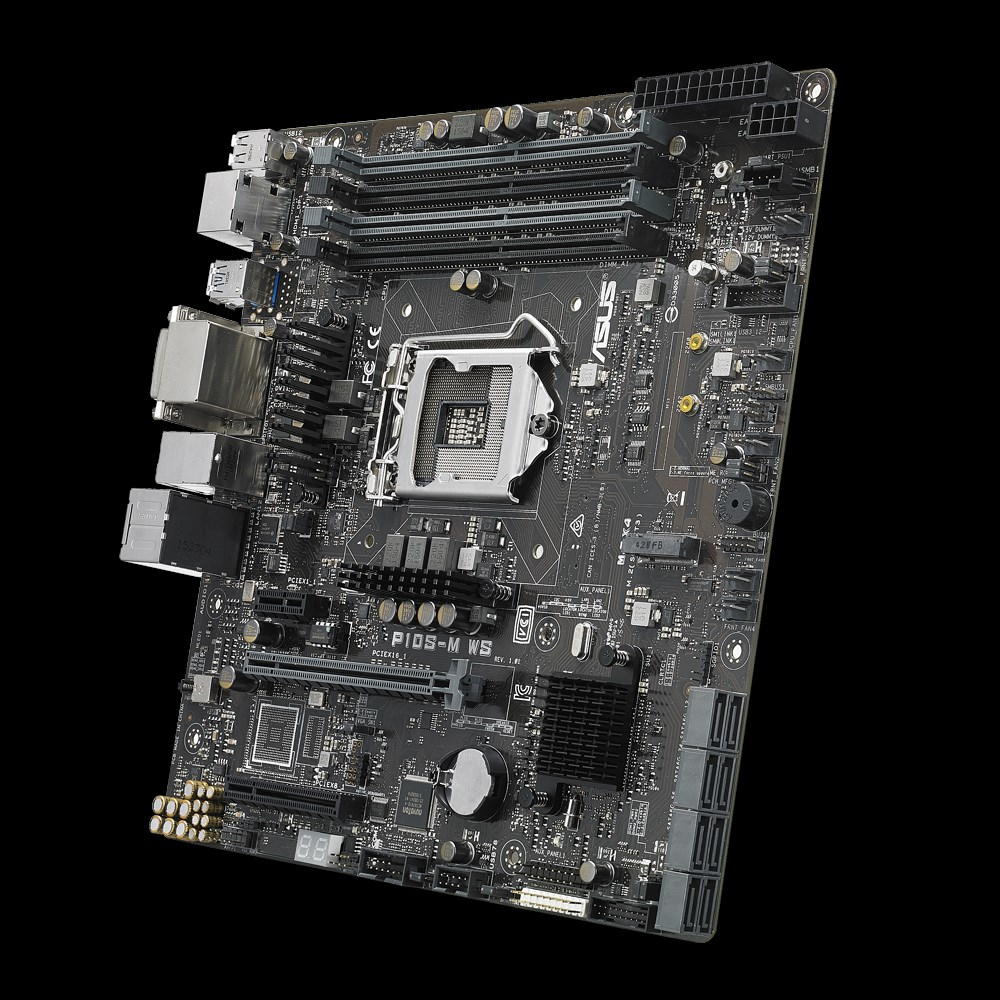

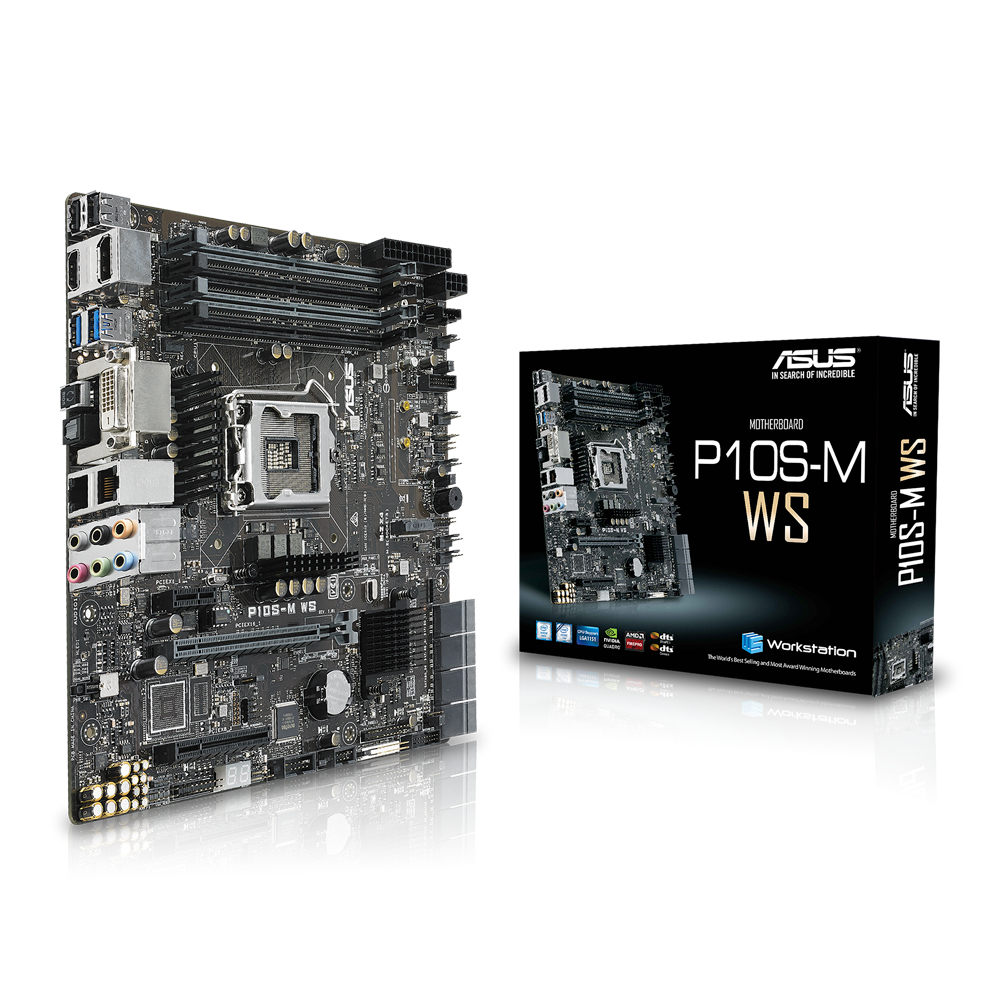

ASUS P10S-M WS

ASUS P10S-M WS

Model P10S-M WSPart no. 90SB05Q0-M0EAY0EAN 889349268742

59 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
P10S-M WS
Part number
90SB05Q0-M0EAY0
EAN / UPC
889349268742, 4058154135839, 4712900268744
Also known as
ASUS P10S-M WS Intel® C236 LGA 1151 (Socket H4) micro ATX

Specifications

59 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®, Intel® Xeon® E3 Family
Lithography14 nm

Memory

Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III
RAID supportYes
RAID levels0, 1, 5, 10

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors8
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors5
Chassis intrusion connectorYes
Number of COM connectors1
TPM connectorYes

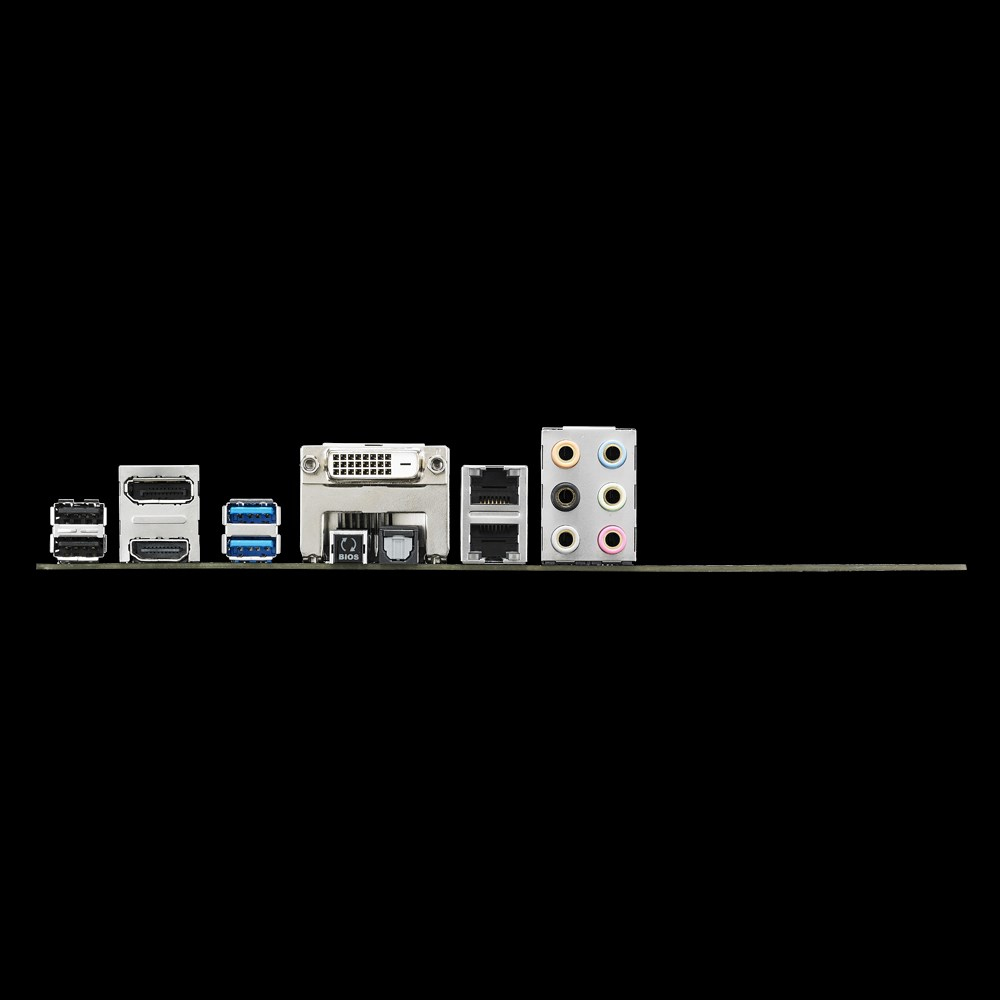

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
PS/2 ports quantity0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity1
DisplayPorts quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel I210
Wi-FiNo

Features

Component forWorkstation
Motherboard form factormicro ATX
Motherboard chipsetIntel® C236
Audio chipRealtek ALC1150
Audio output channels7.1 channels

Expansion slots

PCI Express x1 (Gen 3.x) slots1
PCI Express x8 (Gen 2.x) slots0
PCI Express x8 (Gen 3.x) slots1
PCI Express x16 (Gen 2.x) slots0
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots1

BIOS

BIOS typeEFI AMI
BIOS memory size16 Mbit
ACPI version5.0a
System Management BIOS (SMBIOS) version3.0

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Cables includedSATA
User guideYes

Other features

DVI portYes
Audio outputYes
Number of DIMM slots4
Number of processors supported1
