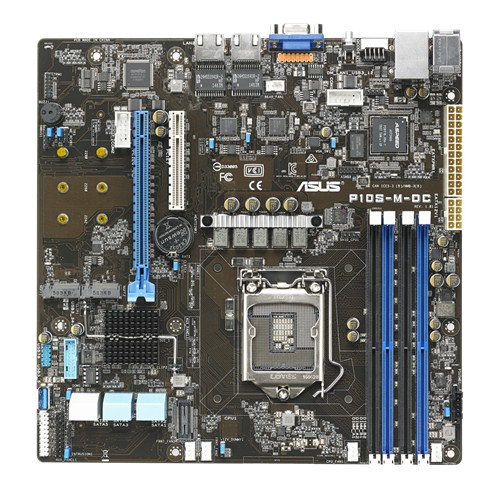

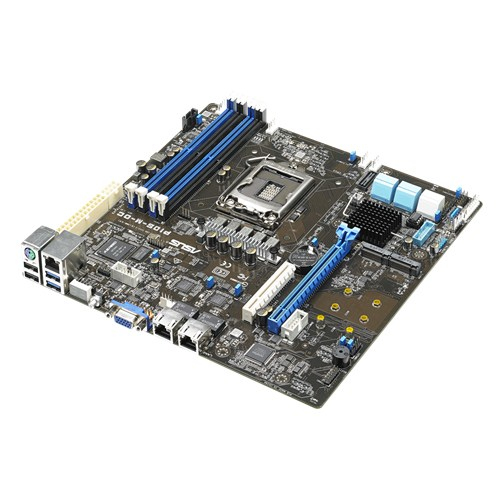

ASUS P10S-M-DC Intel® C232 LGA 1151 (Socket H4) micro ATX
Model P10S-M-DCPart no. 90SB05L0-M0UAY0EAN 889349214091
50 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- Discrete graphics supportYes
- USB 2.0 connectors1
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- Discrete graphics support
- Yes
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- P10S-M-DC
- Part numbers
- 90SB05L0-M0UAY0, 90SB05L0-M0UAY1
- EAN / UPC
- 889349214091, 4712900214093
- Also known as
- ASUS P10S-M-DC Intel® C232 LGA 1151 (Socket H4) micro ATX
Specifications
50 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Intel Xeon series | E3-1200 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics support | Yes |
| On-board graphics card memory | 32 MB |
| On-board graphics card model | Aspeed AST2400 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 5 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Serial port headers | 1 |
| TPM connector | Yes |

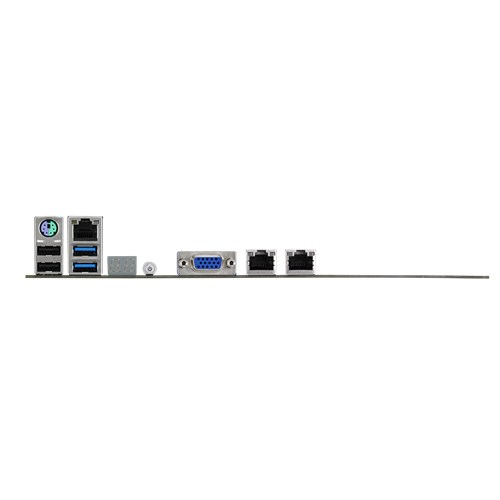

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel® C232 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
Processor special features
| Specification | Value |
|---|---|
| Conflict-Free | Yes |
| Intel Rapid Storage Technology | No |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Intel® vPro™ Platform Eligibility | No |
| Number of DIMM slots | 4 |
What people say
Reviews & ratings
ASUS P10S-M-DC Intel® C232 LGA 1151 (Socket H4) micro ATX
No reviews yet
Be the first to tell others how ASUS P10S-M-DC Intel® C232 LGA 1151 (Socket H4) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P10S-M-DC Intel® C232 LGA 1151 (Socket H4) micro ATX
All motherboard comparisons- ASUS P10S-M-DC Intel® C232 LGA 1151 (Socket H4) micro ATX vsASUS H110M-R/C/SI Intel® H110 LGA 1151 (Socket H4) micro ATXCompare specs

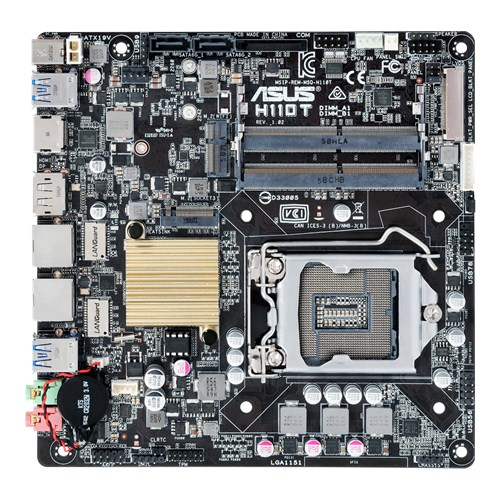

- ASUS P10S-M-DC Intel® C232 LGA 1151 (Socket H4) micro ATX vsASUS H110T motherboard Intel® H110 LGA 1151 (Socket H4) mini ITXCompare specs
- ASUS P10S-M-DC Intel® C232 LGA 1151 (Socket H4) micro ATX vsASUS E3-PRO V5Compare specs
- ASUS P10S-M-DC Intel® C232 LGA 1151 (Socket H4) micro ATX vsASUS B150I PRO GAMING/AURACompare specs
- ASUS P10S-M-DC Intel® C232 LGA 1151 (Socket H4) micro ATX vsGIGABYTE SUPPORTS 6TH GENERATION INTEL CORE PROCESSOR PCIE GEN3 X4 M.2 CONNECTOR WITH UCompare specs
- ASUS P10S-M-DC Intel® C232 LGA 1151 (Socket H4) micro ATX vsMSI H110I PRO ACCompare specs

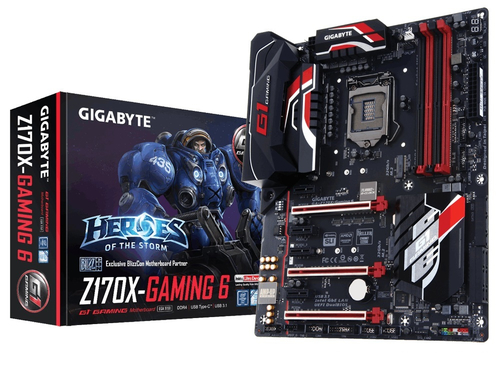

- ASUS P10S-M-DC Intel® C232 LGA 1151 (Socket H4) micro ATX vsGIGABYTE GA-Z170X-GAMING 6 Z170 MPCompare specs

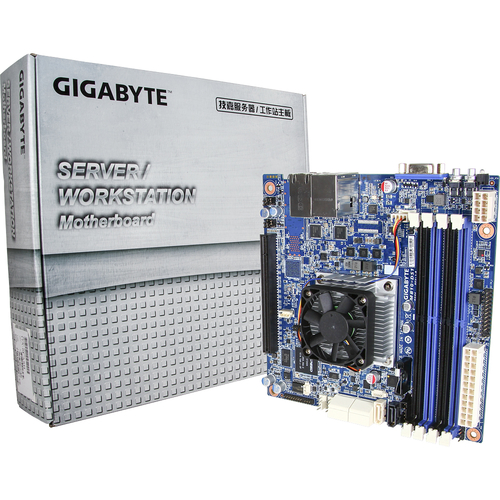

- ASUS P10S-M-DC Intel® C232 LGA 1151 (Socket H4) micro ATX vsGIGABYTE MB10-DS1 motherboard BGA 1667 Mini-ITXCompare specs
