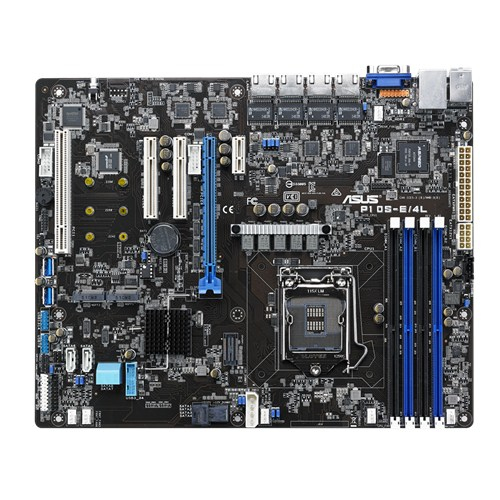

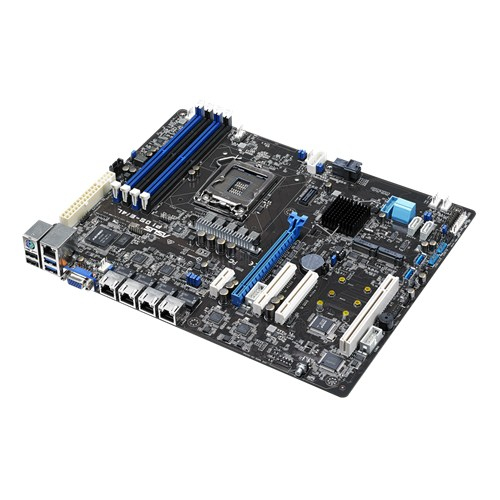

ASUS P10S-E/4L Intel® C236 LGA 1151 (Socket H4) ATX
Model P10S-E/4LPart no. 90SB0520-M0UAY0EAN 889349092941
52 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- Discrete graphics supportYes
- USB 2.0 connectors2
- Component forServer
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- Discrete graphics support
- Yes
- USB 2.0 connectors
- 2
- Component for
- Server
- Brand
- ASUS
- Category
- Motherboard
- Model
- P10S-E/4L
- Part number
- 90SB0520-M0UAY0
- EAN / UPC
- 889349092941, 4058154109014, 4712900092943
- Also known as
- ASUS P10S-E/4L Intel® C236 LGA 1151 (Socket H4) ATX
Specifications
52 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Intel Xeon series | E3-1200 |
| Processor number of cores supported | 4 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics support | Yes |
| On-board graphics card memory | 32 MB |
| On-board graphics card model | Aspeed AST2400 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 8 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 6 |
| Chassis intrusion connector | Yes |
| Serial port headers | 2 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 5 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® C236 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Processor special features
| Specification | Value |
|---|---|
| Conflict-Free | Yes |
| Intel Rapid Storage Technology | Yes |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Intel® vPro™ Platform Eligibility | Yes |
| Number of DIMM slots | 4 |
| Number of processors supported | 1 |
