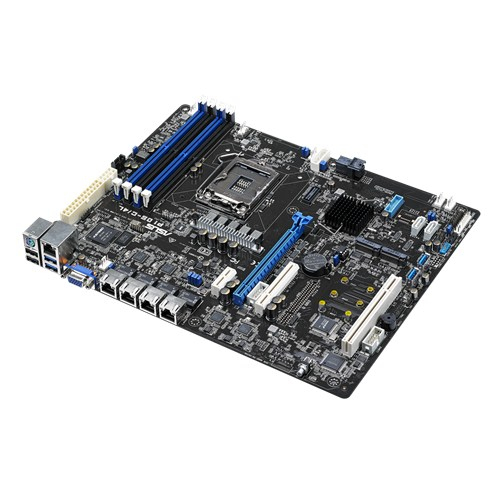

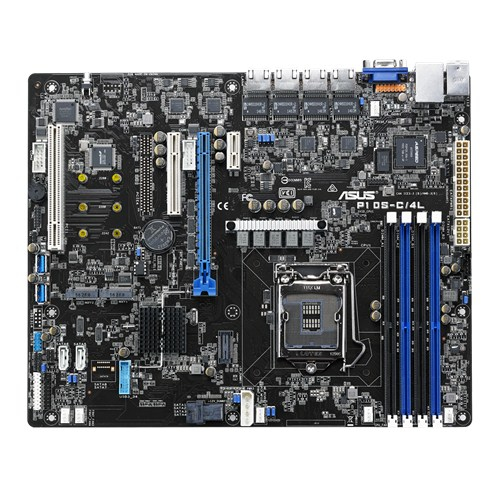

ASUS P10S-C/4L Intel® C232 LGA 1151 (Socket H4) ATX

ASUS P10S-C/4L Intel® C232 LGA 1151 (Socket H4) ATX

Model P10S-C/4LPart no. 90SB0530-M0UAY0EAN 889349093146

50 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • On-board graphics card memory32 MB
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
On-board graphics card memory
32 MB
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Brand
ASUS
Category
Motherboard
Model
P10S-C/4L
Part number
90SB0530-M0UAY0
EAN / UPC
889349093146, 4058154109021, 4712900093148
Also known as
ASUS P10S-C/4L Intel® C232 LGA 1151 (Socket H4) ATX

Specifications

50 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive interfacesSATA III

Graphics

On-board graphics card memory32 MB
On-board graphics card modelAspeed AST2400

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
ATX Power connector (24-pin)Yes
Chassis intrusion connectorYes
Serial port headers2
TPM connectorYes

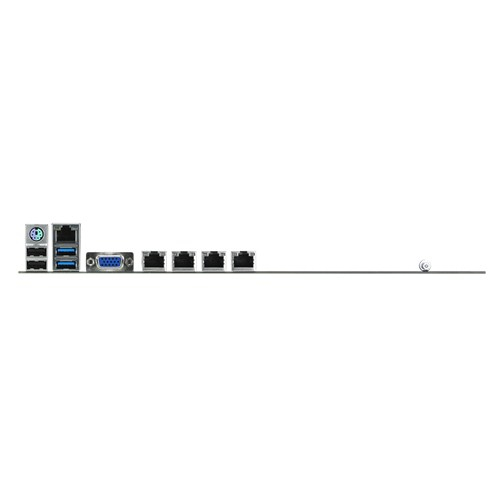

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports5
PS/2 ports quantity1
VGA (D-Sub) ports quantity1
DVI-D ports quantity0
DVI-I ports quantity0
COM ports quantity0

Network

Ethernet LANYes
LAN controllerIntel I210
Wi-FiNo

Features

Component forServer
Motherboard form factorATX
Motherboard chipsetIntel® C232

Expansion slots

PCI Express x8 (Gen 2.x) slots0
PCI Express x8 (Gen 3.x) slots1
PCI Express x16 (Gen 2.x) slots0
PCI Express x16 (Gen 3.x) slots1

Processor special features

Conflict-FreeYes
Intel Rapid Storage TechnologyNo
Intel Rapid Storage Technology enterpriseYes
Intel Trusted Execution TechnologyYes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® Virtualization Technology (Intel® VT)VT-d

Operational conditions

Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width305 mm
Depth244 mm

Other features

Intel® vPro™ Platform EligibilityNo
Number of DIMM slots4
