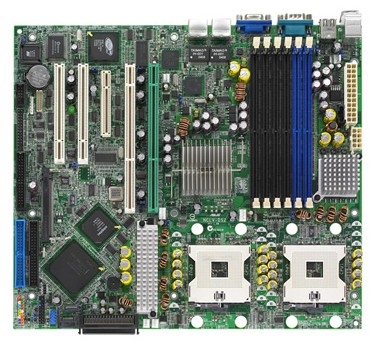

ASUS NCLV-DS2 motherboard Intel® E7320 Socket 604 (mPGA604)
Model NCLV-DS2
26 specifications
- Processor manufacturerIntel
- Number of memory slots6
- Maximum graphics card memory8 MB
- USB 2.0 connectors2
- LAN controllerBroadcom BCM5721
- Motherboard chipsetIntel® E7320
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- Maximum graphics card memory
- 8 MB
- USB 2.0 connectors
- 2
- LAN controller
- Broadcom BCM5721
- Motherboard chipset
- Intel® E7320
- Brand
- ASUS
- Category
- Motherboard
- Model
- NCLV-DS2
- Part numbers
- NCLV-DS2, 90-MSVA50-G0UAY
- Also known as
- ASUS NCLV-DS2 motherboard Intel® E7320 Socket 604 (mPGA604)
Specifications
26 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 604 (mPGA604) |
| Maximum number of SMP processors | 2 |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| ECC сompatibility | ECC |
| Maximum internal memory | 12 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
| Graphics card | Rage XL |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 6 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Broadcom BCM5721 |
| Networking features | Dual Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® E7320 |
| Power source type | ATX |
| Compatible operating systems | Windows 2000 Server w/SP4 Windows 2000 Advanced Server w/SP4 Windows 2003 Standard SP1 32bit/64bit Windows 2003 Enterprise SP1 32bit/64bit Red Hat Enterprise AS 3.0 UP3/UP4/UP5 Red Hat Enterprise AS 4.0 SuSE Enterprise Server 9.0 SuSE Enterprise Server 9.0 w/SP1 SuSE Enterprise Server 9.2 Fedora cor |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI-E x8 2x PCI 64/66 2x PCI 32/33 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | 20 - 90 °C |
| Operating temperature (T-T) | 10 - 35 °C |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
ASUS NCLV-DS2 motherboard Intel® E7320 Socket 604 (mPGA604)
No reviews yet
Be the first to tell others how ASUS NCLV-DS2 motherboard Intel® E7320 Socket 604 (mPGA604) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS NCLV-DS2 motherboard Intel® E7320 Socket 604 (mPGA604)

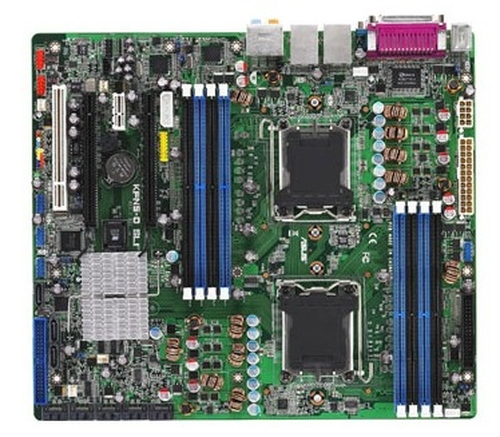

All motherboard comparisons- ASUS NCLV-DS2 motherboard Intel® E7320 Socket 604 (mPGA604) vsASUS KFN5-D SLICompare specs

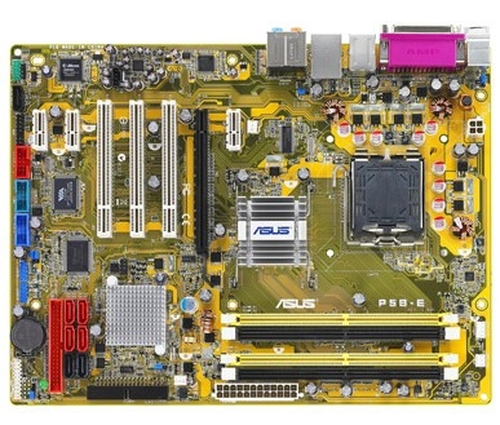

- ASUS NCLV-DS2 motherboard Intel® E7320 Socket 604 (mPGA604) vsASUS P5B-E motherboard LGA 775 (Socket T) ATXCompare specs
- ASUS NCLV-DS2 motherboard Intel® E7320 Socket 604 (mPGA604) vsASUS DSBV-D motherboard Intel®Compare specs
- ASUS NCLV-DS2 motherboard Intel® E7320 Socket 604 (mPGA604) vsASUS M2N-LR motherboard Socket AM2 ATXCompare specs

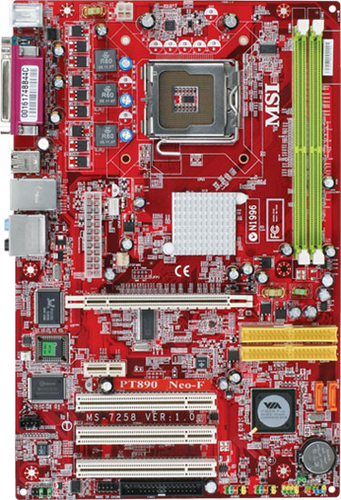

- ASUS NCLV-DS2 motherboard Intel® E7320 Socket 604 (mPGA604) vsMSI PT890-Neo-V LGA 775 (Socket T) ATXCompare specs

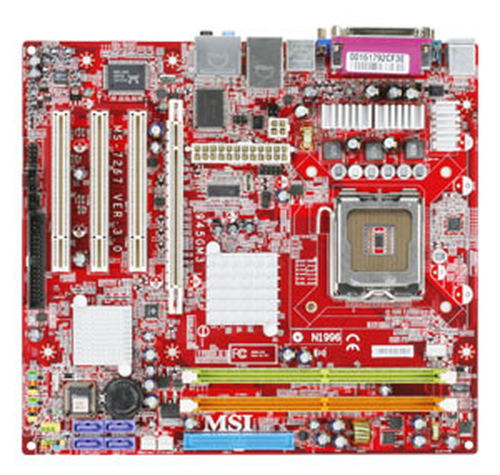

- ASUS NCLV-DS2 motherboard Intel® E7320 Socket 604 (mPGA604) vsMSI 945GM3-F motherboard LGA 775 (Socket T) micro ATXCompare specs
