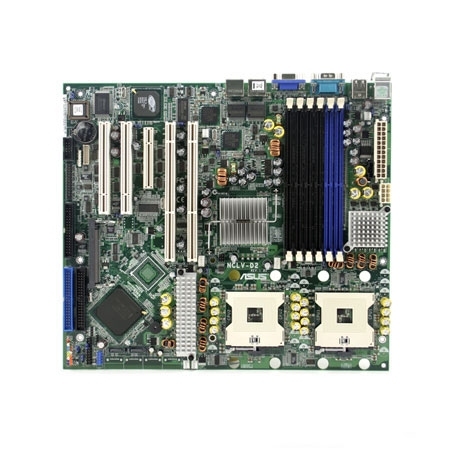

ASUS NCLV-D2 10.5" Server Motherboard
Model NCLV-D2 10.5" Server MotherboardPart no. 90-MSVA40-G0UAYEAN 610839137428
30 specifications
- Processor manufacturerIntel
- Number of memory slots6
- RAID levels0, 1
- Maximum graphics card memory8 MB
- USB 2.0 connectors2
- LAN controllerBroadcom BCM5721
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- RAID levels
- 0, 1
- Maximum graphics card memory
- 8 MB
- USB 2.0 connectors
- 2
- LAN controller
- Broadcom BCM5721
- Brand
- ASUS
- Category
- Motherboard
- Model
- NCLV-D2 10.5" Server Motherboard
- Part number
- 90-MSVA40-G0UAY
- EAN / UPC
- 610839137428
- Also known as
- ASUS NCLV-D2 10.5" Server Motherboard Socket 604 (mPGA604) Extended ATX
Specifications
30 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 604 (mPGA604) |
| Maximum number of SMP processors | 2 |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| ECC сompatibility | ECC |
| Maximum internal memory | 12 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 2 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 6 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Broadcom BCM5721 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | Extended ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | Slot 2: 1 x PCI 32bit/33MHz Slot 3: 1 x PCI 32bit/33MHz Slot 4: 1 x PCI-E x 8 slot (x 4 link) Slot 5: 1 x PCI-X 64bit /66MHz Slot 6: 1 x PCI-X 64bit /66MHz |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | 10 - 35 °C |
| Operating temperature (T-T) | -40 - 70 °C |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASWM 2.0 |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Graphics controller | ATI RageXL |
