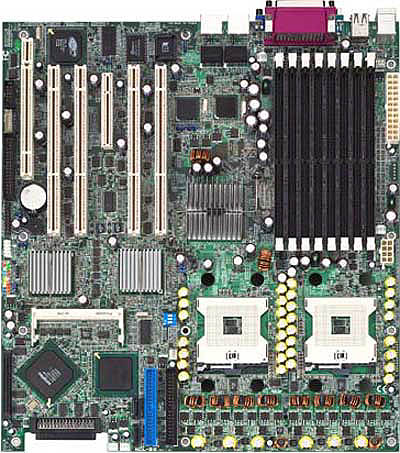

NCL-DS LGA 775 (Socket T) ATX
Model NCL-DSPart no. NCL-DS1
13 specifications
- Processor manufacturerIntel
- ECC сompatibilityECC
- Maximum graphics card memory8 MB
- Networking featuresBroadcom BCM5721 Gb x 2
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- ECC сompatibility
- ECC
- Maximum graphics card memory
- 8 MB
- Networking features
- Broadcom BCM5721 Gb x 2
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- NCL-DS
- Part numbers
- NCL-DS1, 90-MSV450-G0UAY
- Also known as
- ASUS NCL-DS LGA 775 (Socket T) ATX
Specifications
13 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| ECC сompatibility | ECC |
| Maximum internal memory | 16 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
Network
| Specification | Value |
|---|---|
| Networking features | Broadcom BCM5721 Gb x 2 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 4 (PCI-X 64-bit/133MHz ); 1 (Mini PCI-X socket for ZCR); 1 x x8 slot 98P (X4 link) |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 305 x 330 |
| Graphics controller | ATI RAGE-XL |
| I/O ports | Floppy Connector x1 PSU Connector: SSI 24-pin + 12V 8-pin Management Connector x1 Front USB x2 Fan x6 SMBus x1 Chassis Instrusion x1 Rear IO Connectors: External Serial Port x1 External USB Port x2 VGA Port x1 RJ-45 x2 PS/2 Mouse/Mouse x1 SPD/IF Out x1 |
