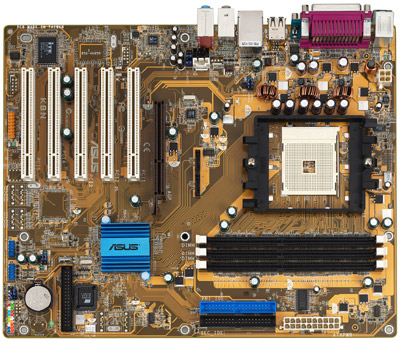

ASUS Motherboard K8N AMD S754 ATX
Model Motherboard K8N AMD S754 ATXPart no. K8NEAN 4719543122365
22 specifications
- Processor manufacturerAMD
- ECC сompatibilityECC & Non-ECC
- S/PDIF out connectorYes
- USB 2.0 ports quantity4
- Networking featuresEthernet/Fast Ethernet
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- ECC сompatibility
- ECC & Non-ECC
- S/PDIF out connector
- Yes
- USB 2.0 ports quantity
- 4
- Networking features
- Ethernet/Fast Ethernet
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- Motherboard K8N AMD S754 ATX
- Part number
- K8N
- EAN / UPC
- 4719543122365, 4719543134887
- Also known as
- ASUS Motherboard K8N AMD S754 ATX Socket 754
Specifications
22 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 754 |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 3 GB |
| Flash memory | 4 MB |
Internal I/O
| Specification | Value |
|---|---|
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Ethernet/Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP8X (1.5V) 5 x PCI |
Other features
| Specification | Value |
|---|---|
| Audio output | Realtek ALC850 |
