ASUS MB X99-M WS/SE

ASUS MB X99-M WS/SE

Model MB X99-M WS/SEPart no. 90SB05P0-M0EAY0EAN 4058154135822

57 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
PC
Brand
ASUS
Category
Motherboard
Model
MB X99-M WS/SE
Part numbers
90SB05P0-M0EAY0, X99-M WS/SE
EAN / UPC
4058154135822, 4712900173147
Also known as
ASUS MB X99-M WS/SE Intel® X99 LGA 2011-v3 micro ATX

Specifications

57 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011-v3
Compatible processor seriesIntel® Core™ i7

Memory

Supported memory typesDDR4-SDRAM
Memory channelsQuad-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1866,2133,2400,2666,2800,3000,3200 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX, 2-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors8
Number of SATA II connectors0
Number of Parallel ATA connectors0
ATX Power connector (24-pin)Yes
Number of EATX power connectors4
CPU fan connectorYes
Number of chassis fan connectors3
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes

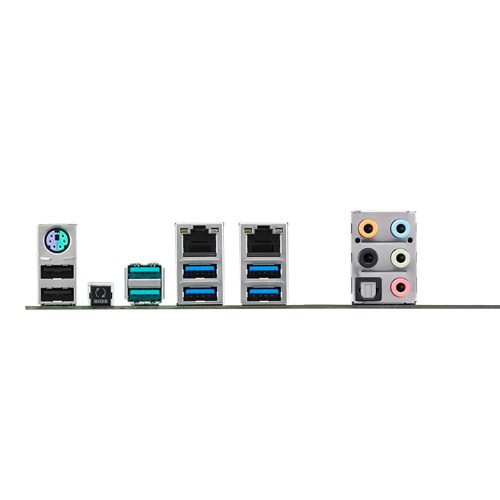

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I210-AT, Intel® I218-LM
Wi-FiYes

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipsetIntel® X99
Audio output channels7.1 channels

BIOS

BIOS typeUEFI AMI
BIOS memory size16 Mbit
ACPI version5.0
Clear CMOS buttonYes

Operational conditions

Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width244 mm
Depth244 mm

Other features

Number of DIMM slots4
Number of processors supported1
