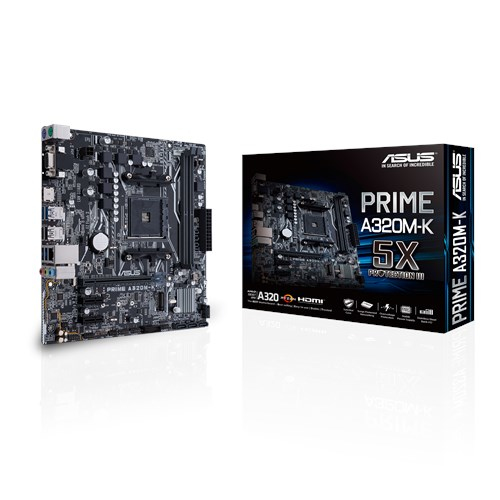

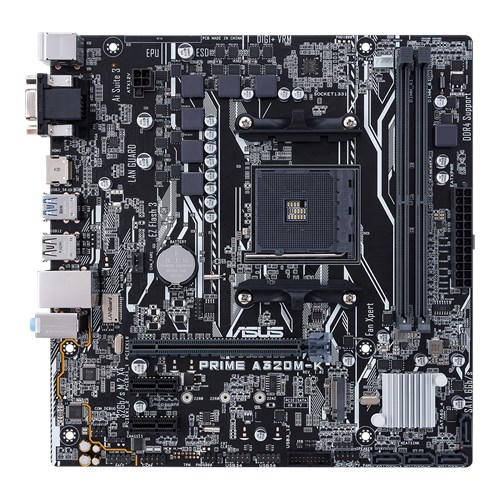

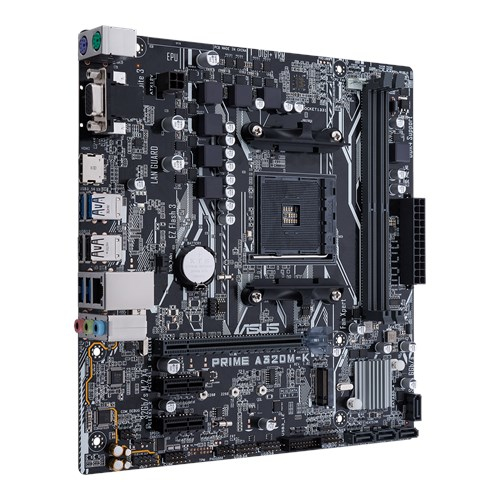

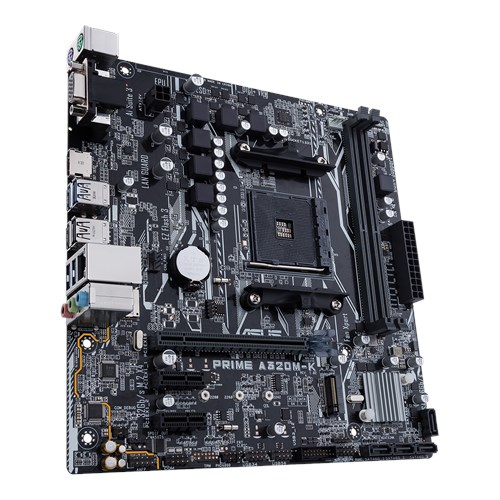

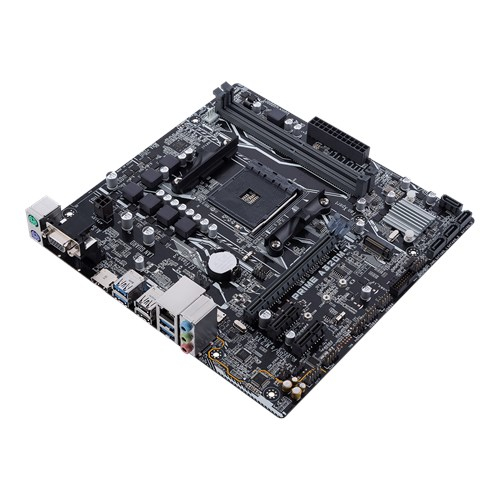

ASUS MB PRIME A320M-K

ASUS MB PRIME A320M-K

Model MB PRIME A320M-KPart no. 90MB0TV0-M0EAY0EAN 889349672068

54 specifications
  • Weight800 g
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesM.2, PCI Express 3.0, SATA
  • Maximum graphics card memory2048 MB
  • USB 2.0 connectors2
See all specifications

Overview

Weight
800 g
Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, PCI Express 3.0, SATA
Maximum graphics card memory
2048 MB
USB 2.0 connectors
2
Brand
ASUS
Category
Motherboard
Model
MB PRIME A320M-K
Part number
90MB0TV0-M0EAY0
EAN / UPC
889349672068, 4712900672060
Also known as
ASUS MB PRIME A320M-K AMD A320 Socket AM4 micro ATX

Specifications

54 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2666,2933,3200 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesM.2, PCI Express 3.0, SATA

Graphics

Maximum graphics card memory2048 MB
Graphics card familyAMD

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA connectors4
S/PDIF out connectorYes
Audio connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Peripheral (Molex) power connectors (4-pin)1

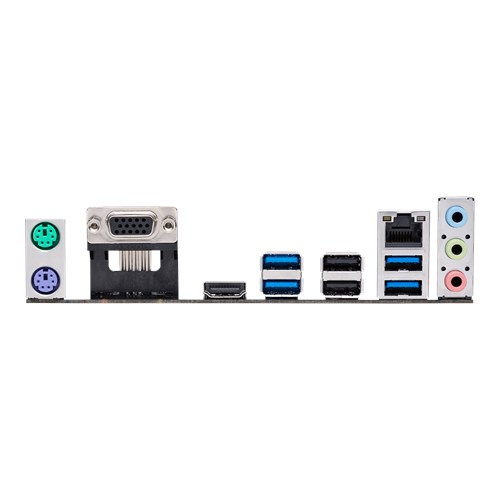

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.4b
DVI-D ports quantity0
S/PDIF out portYes
COM ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A320
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
Clear CMOS jumperYes

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width226 mm
Depth221 mm
Height247 mm

Other features

Weight800 g
