ASUS MB P8H67-M

ASUS MB P8H67-M

Model MB P8H67-MPart no. P8H67-M <REV 3.0>EAN 610839179398

56 specifications
  • Processor manufacturerIntel
  • Number of memory slots4
  • RAID levels0, 1, 5, 10
  • Parallel processing technology supportQuad-GPU CrossFireX
  • USB 2.0 ports quantity6
  • LAN controllerRealtek RTL8111E
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
4
RAID levels
0, 1, 5, 10
Parallel processing technology support
Quad-GPU CrossFireX
USB 2.0 ports quantity
6
LAN controller
Realtek RTL8111E
Brand
ASUS
Category
Motherboard
Model
MB P8H67-M
Part numbers
P8H67-M <REV 3.0>, P8H67-M <REV.3.0>
EAN / UPC
610839179398
Also known as
ASUS MB P8H67-M Intel® H67 LGA 1155 (Socket H2)

Specifications

56 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333 MHz
Maximum internal memory32 GB
Supported memory module capacities2GB, 4GB, 8GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportQuad-GPU CrossFireX
On-board graphics cardNo

Internal I/O

USB 2.0 connectors4
Number of SATA connectors6
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Number of COM connectors1
TPM connectorYes

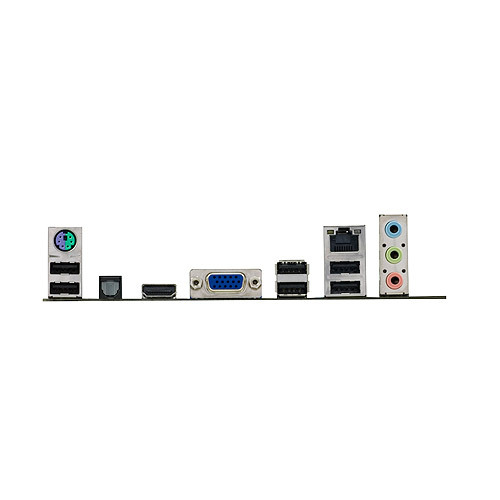

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity0
Headphone outputs3
Microphone inYes
S/PDIF out portYes

Network

LAN controllerRealtek RTL8111E
Networking featuresGigabit LAN

Features

Component forPC
Motherboard chipsetIntel® H67
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Overclocking featuresPrecision Tweaker 2 - vCore: Adjustable CPU voltage at 190-step - iGPU: Adjustable iGPU voltage at 254-step - iGPU: Adjustable iGPU voltage at 190-step - vCCIO: Adjustable I/O voltage at 190-step - vDRAM Bus: Adjustable Memory voltage at 190-step - vPCH: Adjustable Chipset voltage at 190-step - vCPU

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots2
PCI slots1

BIOS

BIOS typeEFI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width245 mm
Depth234 mm

Packaging content

Drivers includedYes
Trial softwareAnti-virus software (OEM version)
Bundled softwareASUS Update ASUS Utilities

Other features

Quick installation guideYes
