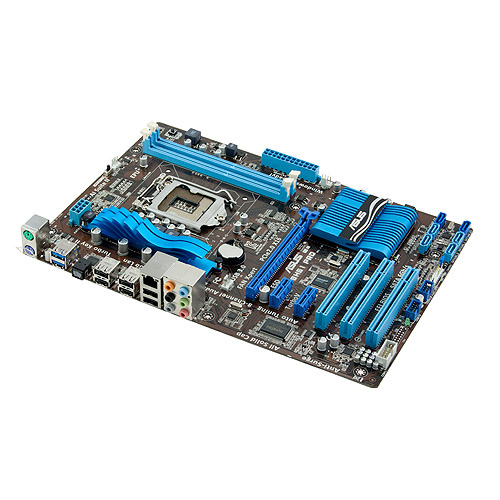

ASUS MB P8H61 PRO/INTEL LGA 1155/ATX Rev.3.0
Model MB P8H61 PRO/INTEL LGA 1155/ATX Rev.3.0Part no. P8H61 PROEAN 610839179114
55 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
- USB 2.0 ports quantity6
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 6
- Brand
- ASUS
- Category
- Motherboard
- Model
- MB P8H61 PRO/INTEL LGA 1155/ATX Rev.3.0
- Part number
- P8H61 PRO
- EAN / UPC
- 610839179114
- Also known as
- ASUS MB P8H61 PRO/INTEL LGA 1155/ATX Rev.3.0 Intel® H61 LGA 1155 (Socket H2)
Specifications
55 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H61 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI |
| BIOS memory size | 32 Mbit |
| ACPI version | 2.0a |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 213 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Manageability features | WOL by PME, WOR by PME, PXE |
