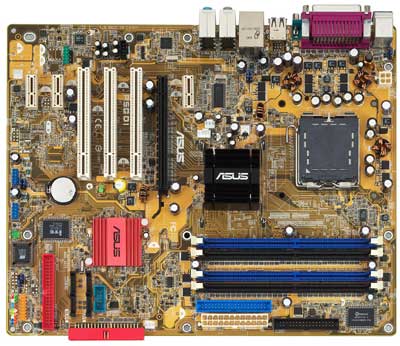

ASUS MB P5GD1
Model MB P5GD1Part no. 90-MBL095-G0EAYKZ
13 specifications
- Processor manufacturerIntel
- Maximum internal memory4 GB
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Maximum internal memory
- 4 GB
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- MB P5GD1
- Part number
- 90-MBL095-G0EAYKZ
- Also known as
- ASUS MB P5GD1 Intel® 915P Express LGA 775 (Socket T) ATX
Specifications
13 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 4 GB |
| Flash memory | 4 MB |
Network
| Specification | Value |
|---|---|
| Networking features | Marvell 88E8053 PCIe Gigabit LAN Controller, features AI NET2 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® 915P Express |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x16 3 x PCI Express x1 3 x PCI |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS PC Probe ASUS LiveUpdate Utility Anti-virus software (OEM version) |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 305 x 245 |
| Audio output | Realtek ALC861 High Definition Audio 8-channel CODEC |
| I/O ports | Back Panel I/O Ports 1 x Parallel 1 x Serial 1 x S/PDIF Output 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x 8-Channel Audio I/O 1 x RJ45 4 x USB 2.0/1.1 2 x USB 2.0 CPU / Chassis / Power FAN Chassis Intrusion CD audio in GAME/MIDI Front panel High Definition Audio 1 x COM2 24-pin ATX Power 4-pin ATX 12V Pow |
