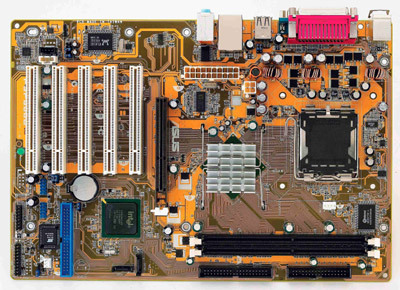

ASUS MB ASUS INTEL S775 P5P800S ATX
Model MB ASUS INTEL S775 P5P800S ATXPart no. P5P800SEAN 610839123926
10 specifications
- Processor socketLGA 775 (Socket T)
- Maximum internal memory2 GB
- Motherboard form factorATX
Overview
- Processor socket
- LGA 775 (Socket T)
- Maximum internal memory
- 2 GB
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- MB ASUS INTEL S775 P5P800S ATX
- Part number
- P5P800S
- EAN / UPC
- 610839123926, 4719543123928
- Also known as
- ASUS MB INTEL S775 P5P800S ATX LGA 775 (Socket T)
Specifications
10 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | LGA 775 (Socket T) |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 2 GB |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek RTL8100C 10/100 Mbps LAN controller |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP 8X (0.8V, 1.5V only); 5 x PCI |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 305 x 205 |
| Audio output | ADI AD1888 SoundMAX 6-channel audio CODEC |
| I/O ports | Back Panel I/O Ports: 1 x Parallel 1 x Serial 2 x PS/2 1 x Audio I/O 1 x SPDIF 1 x RJ45 4 x USB 2.0 Internal I/O Connectors: - 2 x USB 2.0 - CPU / Chassis FAN - Chassis Intrusion - 20-pin ATX Power - 4-pin ATX 12V Power - S/PDIF - CD / AUX audio in - Game/MIDI - 20 Pin Panel - Front Panel Audio |
