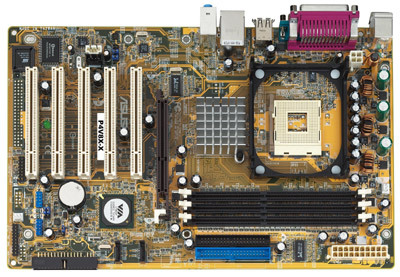

ASUS MB ASUS INTEL S478 P4V8X-X ATX
Model MB ASUS INTEL S478 P4V8X-X ATXPart no. P4V8X-XEAN 610839116720
9 specifications
- Maximum internal memory3 GB
- RAID levels1
- Networking featuresRealtek 10/100 Mbps Ethernet LAN
- Motherboard form factorATX
Overview
- Maximum internal memory
- 3 GB
- RAID levels
- 1
- Networking features
- Realtek 10/100 Mbps Ethernet LAN
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- MB ASUS INTEL S478 P4V8X-X ATX
- Part number
- P4V8X-X
- EAN / UPC
- 610839116720
- Also known as
- ASUS MB INTEL S478 P4V8X-X ATX
Specifications
9 specifications in 6 groups
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 3 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek 10/100 Mbps Ethernet LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP 8X/ 4X (alleen 0.8V, 1.5V); 5 x PCI |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 305 x 193 |
| Audio output | ADI AD1980 SoundMAX 6-kanaals CODEC |
| I/O ports | Achterpaneel I/O Poorten: 1 x Parallel 1 x Serieel 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x S/PDIF Output 1 x Audio I/O 4 x USB 2.0/1.1 1 x RJ45 Interne I/O Connectoren: -2 x USB 2.0 connector ondersteunt vier additionele USB 2.0 poorten -CPU / Chassis FAN connectoren -Chassis Indringer -CD / AUX audio |
