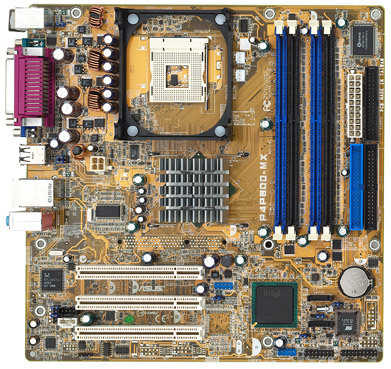

ASUS MB ASUS INTEL S478 P4P800-MX m-ATX
Model MB ASUS INTEL S478 P4P800-MX m-ATXPart no. P4P800-MX
10 specifications
- Maximum internal memory4 GB
- Motherboard form factorATX
- Expansion slots3 x PCI
Overview
- Maximum internal memory
- 4 GB
- Motherboard form factor
- ATX
- Expansion slots
- 3 x PCI
- Brand
- ASUS
- Category
- Motherboard
- Model
- MB ASUS INTEL S478 P4P800-MX m-ATX
- Part number
- P4P800-MX
- Also known as
- ASUS MB INTEL S478 P4P800-MX m-ATX Intel® 865GV
Specifications
10 specifications in 5 groups
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 4 GB |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek 8101L 10/100 Mbps PCI LAN Controller |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® 865GV |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 3 x PCI |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 245 x 245 |
| Audio output | ADI AD1888 SoundMAX 6-channel CODEC |
| Graphics controller | Intel Extreme Graphics 2 |
| I/O ports | Back Panel I/O Ports: 1 x Parallel 1 x Serial 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x VGA 1 x Audio I/O 4 x USB 2.0 1 x RJ45 Internal I/O Connectors: 2 x USB 2.0 connector support additional 4 ports CPU / Chassis FAN connectors 20-pin ATX Power connector 4-pin ATX 12V Power connector Game/MIDI port con |
