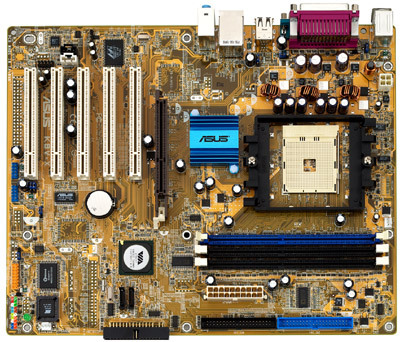

ASUS MB ASUS AMD S754 K8V-X ATX
Model MB ASUS AMD S754 K8V-X ATXPart no. K8V-XEAN 610839113477
8 specifications
- ECC сompatibilityECC
- Networking featuresMarvell 88E 8001 GbLAN
- Motherboard form factorATX
- Expansion slots1 x AGP 8X; 5 x PCI
Overview
- ECC сompatibility
- ECC
- Networking features
- Marvell 88E 8001 GbLAN
- Motherboard form factor
- ATX
- Expansion slots
- 1 x AGP 8X; 5 x PCI
- Brand
- ASUS
- Category
- Motherboard
- Model
- MB ASUS AMD S754 K8V-X ATX
- Part number
- K8V-X
- EAN / UPC
- 610839113477, 4250393722928, 4719543120309
- Also known as
- ASUS MB AMD S754 K8V-X ATX
Specifications
8 specifications in 5 groups
Memory
| Specification | Value |
|---|---|
| ECC сompatibility | ECC |
| Maximum internal memory | 3 GB |
Network
| Specification | Value |
|---|---|
| Networking features | Marvell 88E 8001 GbLAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP 8X; 5 x PCI |
Other features
| Specification | Value |
|---|---|
| Audio output | ADI AD1980, 6-channel CODEC |
| I/O ports | Back Panel I/O Ports: 1 x Serial 4 x USB 1 x Parallel 1 x RJ45 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x Audio I/O 1 x SPDIF OUT Internal I/O connectors: - 2x USB2.0 connector supports additional 4 USB 2.0 ports - Intel Front Panel Audio connector - 20-pin ATX power connector - 4-pin ATX 12V power connec |
