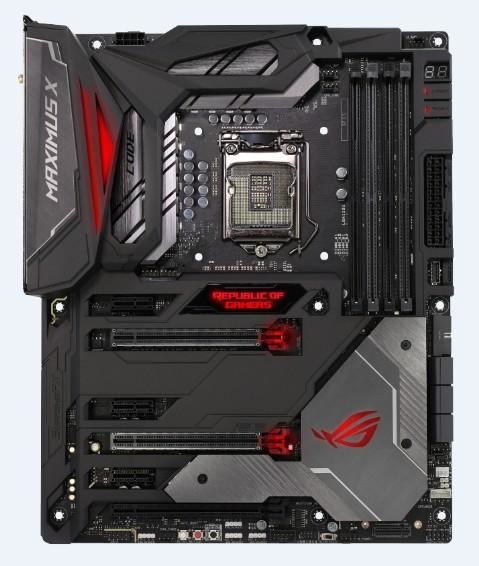

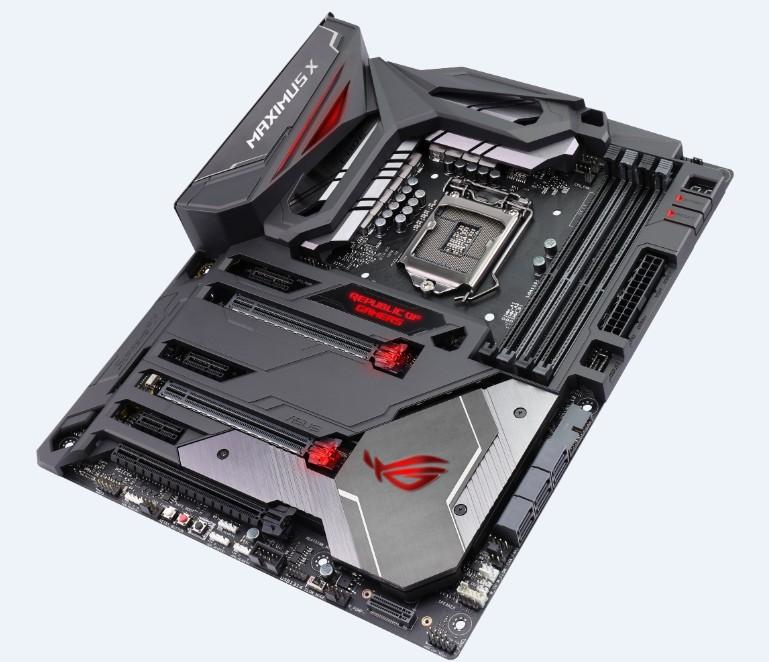

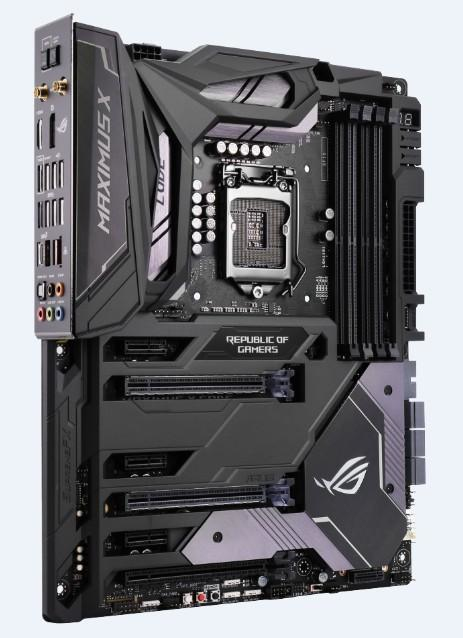

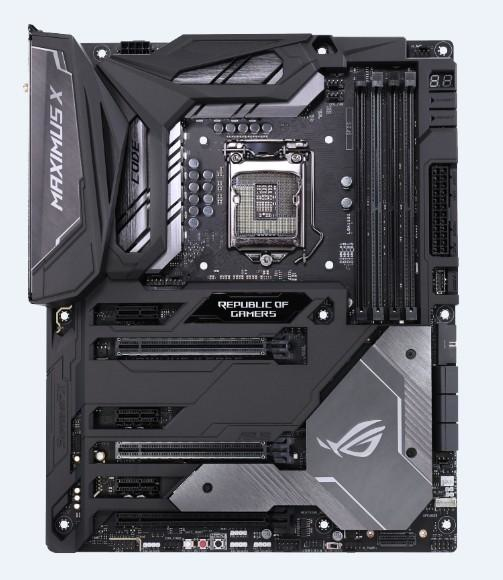

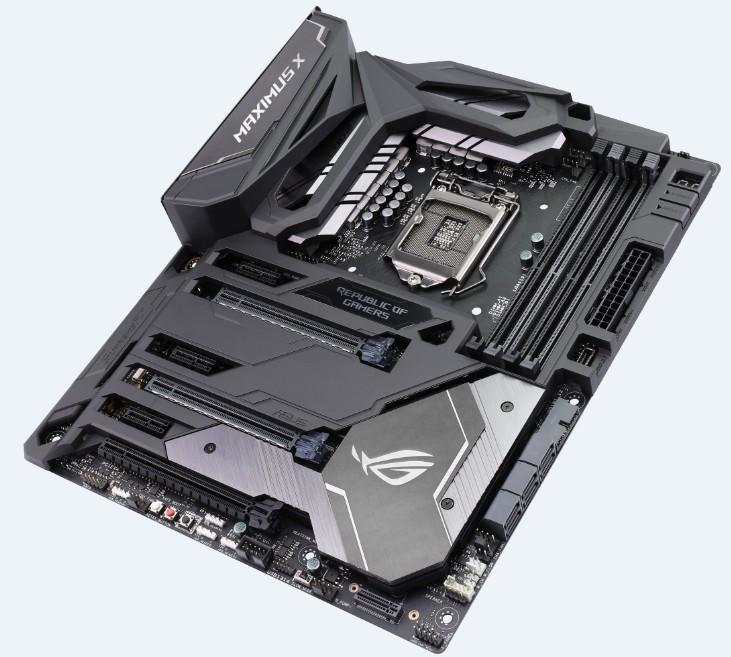

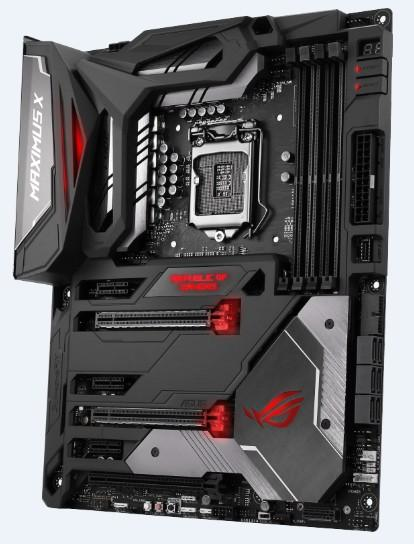

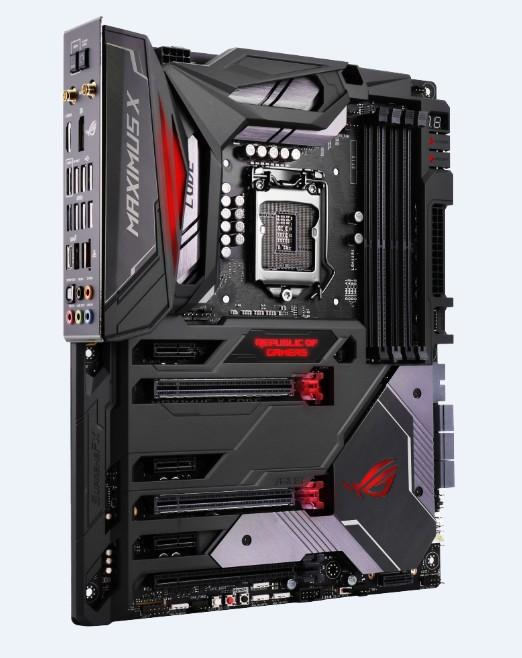

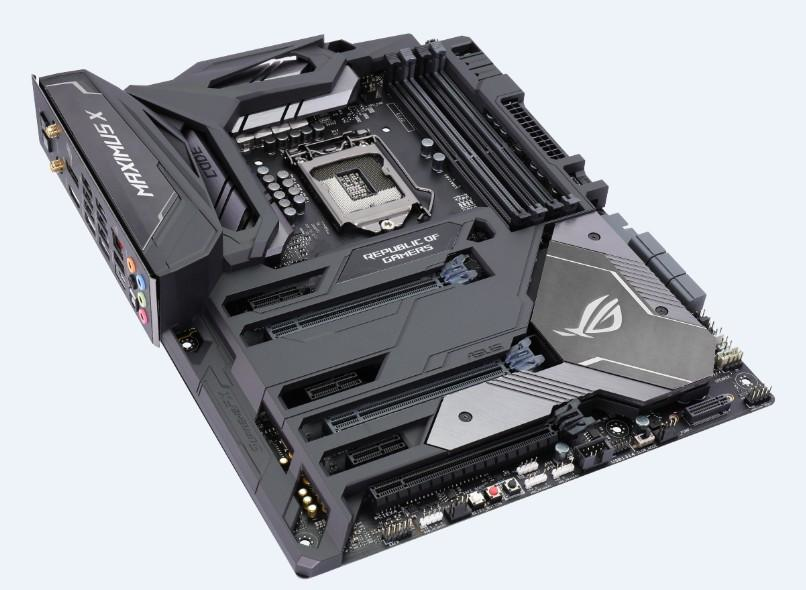

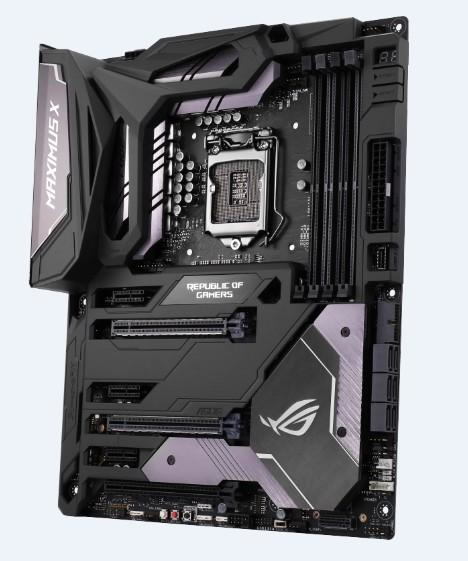

ASUS Maximus X Code

ASUS Maximus X Code

Model Maximus X CodePart no. 90MB0VX0-M0EAY0EAN 889349906330

65 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 5, 10
  • Parallel processing technology support2-Way SLI, 3-Way CrossFireX
  • USB 2.0 connectors1
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 5, 10
Parallel processing technology support
2-Way SLI, 3-Way CrossFireX
USB 2.0 connectors
1
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
Maximus X Code
Part number
90MB0VX0-M0EAY0
EAN / UPC
889349906330, 4712900906332
Also known as
ASUS Maximus X Code Intel® Z370 LGA 1151 (Socket H4) ATX

Specifications

65 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2800,3000,3200,3300,3333,3400,3466,3600,3733,3866,4000,4133 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way SLI, 3-Way CrossFireX
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors3

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
S/PDIF out portYes

Network

Ethernet LANYes
LAN controllerIntel® I219-V
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version4.2

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z370
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64

Expansion slots

PCI Express x1 (Gen 3.x) slots3
PCI Express x16 (Gen 3.x) slots3
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size16 Mbit
ACPI version6.0
Clear CMOS buttonYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel Rapid Storage TechnologyYes
Intel® Smart Response TechnologyYes
Intel® Turbo Boost Technology2.0
Intel® Optane™ Memory ReadyYes

Weight & dimensions

Width305 mm
Depth244 mm
