ASUS MAXIMUS VIII RANGER

ASUS MAXIMUS VIII RANGER

Model MAXIMUS VIII RANGERPart no. 90MB0LX0-M0EAY0EAN 5712505739518

70 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • Maximum graphics card memory512 MB
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
Maximum graphics card memory
512 MB
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
MAXIMUS VIII RANGER
Part number
90MB0LX0-M0EAY0
EAN / UPC
5712505739518, 889349127131, 2100001388225, 4053162931237 +3 more
Also known as
ASUS MAXIMUS VIII RANGER Intel® Z170 LGA 1151 (Socket H4) ATX

Specifications

70 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds3300,3333,2666,3400,2800,2133,3000,2400,3200 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory512 MB
Parallel processing technology support3-Way CrossFireX, Quad-GPU SLI
On-board graphics cardNo
Graphics card familyIntel
Graphics cardHD Graphics
Maximum resolution4096 x 2304 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA Express connectors2
Number of Parallel ATA connectors0
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors4
EPS power connector (8-pin)Yes

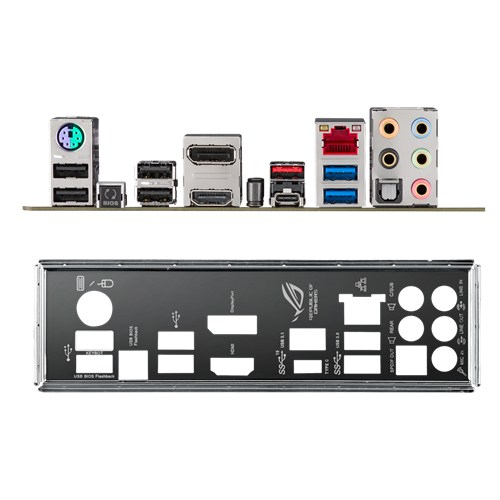

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I219-V

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z170
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 7 Enterprise, Windows 10 Education, Windows 7 Enterprise x64, Windows 10 Education x64, Windows 7 Home Basic, Windows 10 Enterprise, Windows 7 Home Basic x64, Windows 10 Enterprise x64, Windows 7 Home Premium, Windows 10 Home, Windows 7 Home Premium x64, Windows 10 Home x64, Windows 7 Profes

Expansion slots

PCI Express x1 (Gen 3.x) slots3
PCI Express x16 (Gen 3.x) slots3
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size16 Mbit
ACPI version5.0
Clear CMOS buttonYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel Rapid Storage TechnologyYes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Insider™Yes
Intel® Quick Sync Video TechnologyYes
Intel® Smart Response TechnologyYes

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedUSB, SATA

Other features

Quick installation guideYes
