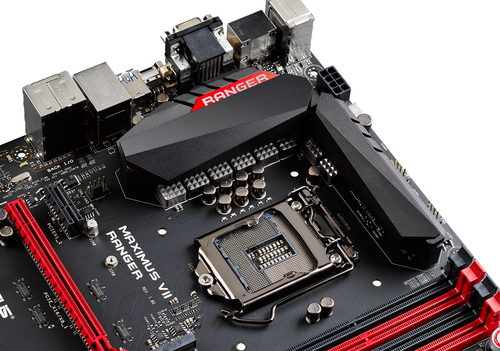

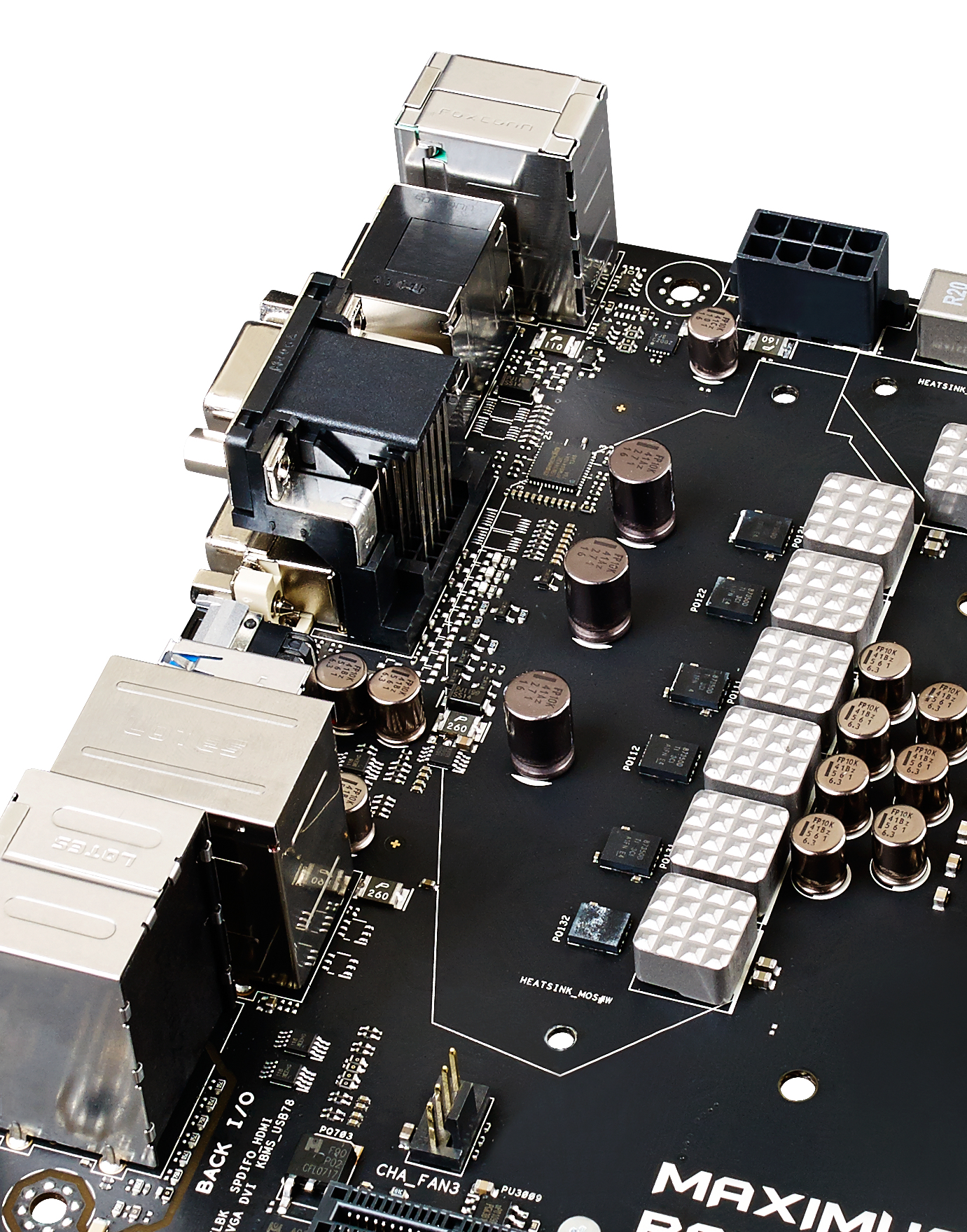

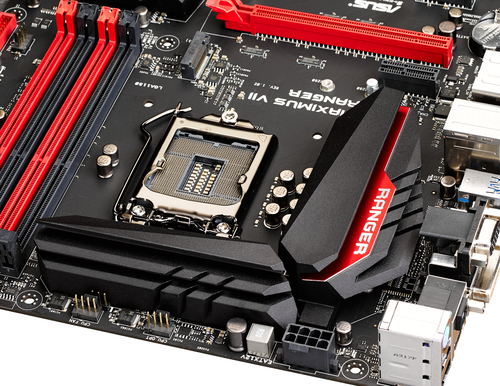

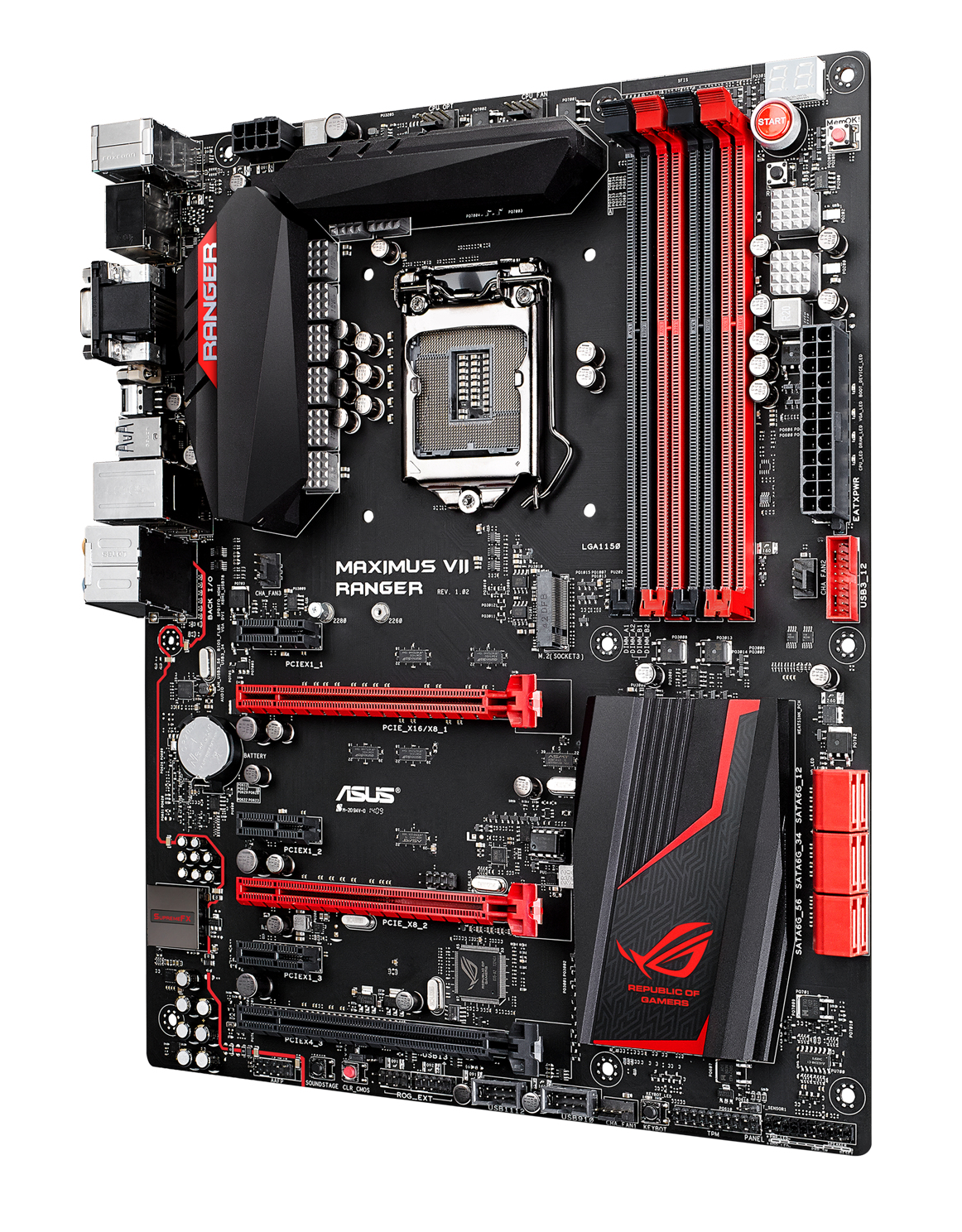

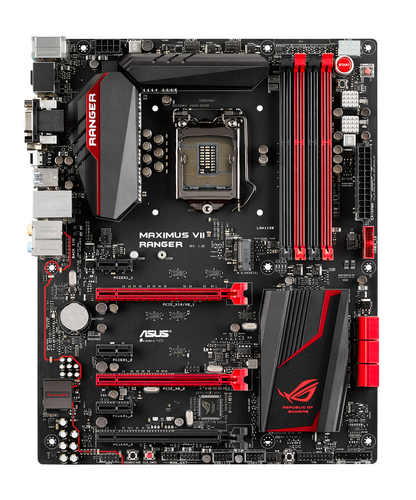

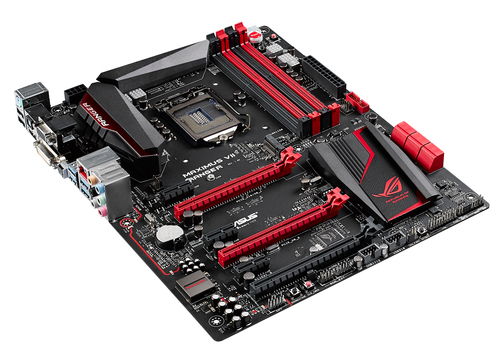

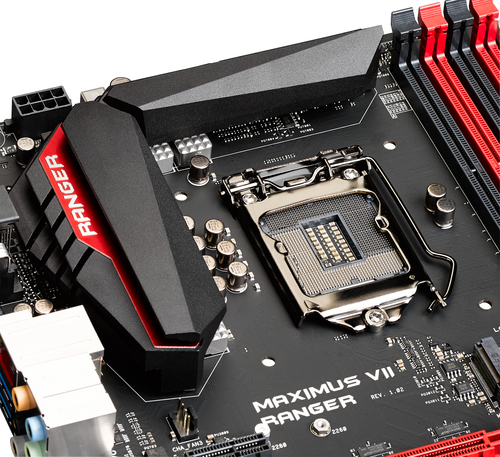

ASUS MAXIMUS VII RANGER

ASUS MAXIMUS VII RANGER

Model MAXIMUS VII RANGERPart no. 90MB0IE0-S0MAY0EAN 5054230790571

66 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesM.2, SATA III
  • Maximum resolution4096 x 2160 pixels
  • USB 2.0 connectors3
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
M.2, SATA III
Maximum resolution
4096 x 2160 pixels
USB 2.0 connectors
3
USB 2.0 ports quantity
2
Brand
ASUS
Category
Motherboard
Model
MAXIMUS VII RANGER
Part numbers
90MB0IE0-S0MAY0, 90MB0IE0-M0EAY0
EAN / UPC
5054230790571, 4053162745520, 4716659765448, 4916659763448 +1 more
Also known as
ASUS MAXIMUS VII RANGER Intel® Z97 LGA 1150 (Socket H3) ATX

Specifications

66 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Intel Core i3/i5/i7/i9 seriesi3-4xxx, i5-4xxx, i7-4xxx

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1866,2000,2133,2200,2400,2600,2666,2800,2933,3000,3100,3200 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesM.2, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportQuad-GPU CrossFireX, Quad-GPU SLI
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA connectors6
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors3
EPS power connector (8-pin)Yes
TPM connectorYes

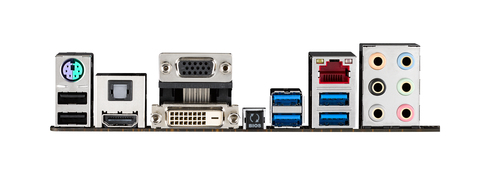

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I218-V

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z97
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64

Expansion slots

PCI Express x1 (Gen 2.x) slots3
PCI Express x16 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size64 Mbit
ACPI version5.0a
Clear CMOS jumperYes

Processor special features

Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Insider™Yes
Intel® Quick Sync Video TechnologyYes
Intel® Smart Response TechnologyYes
Intel® Turbo Boost Technology2.0

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedSATA
