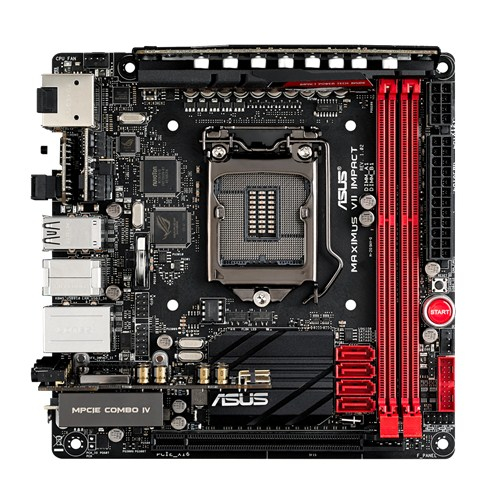

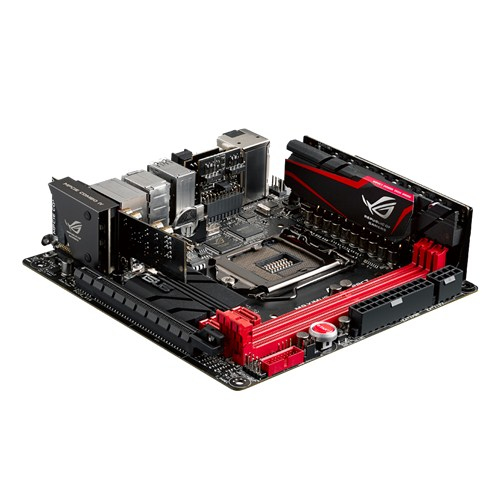

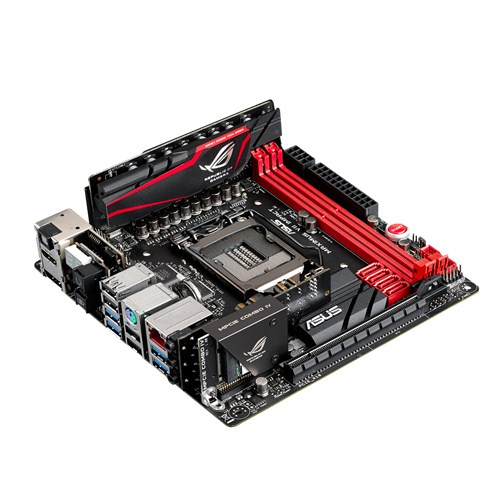

ASUS MAXIMUS VII IMPACT

ASUS MAXIMUS VII IMPACT

Model MAXIMUS VII IMPACTPart no. 90MB0JJ0-M0EAY0EAN 886227846405

57 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA
  • Maximum graphics card memory512 MB
  • USB 2.0 connectors1
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA
Maximum graphics card memory
512 MB
USB 2.0 connectors
1
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
MAXIMUS VII IMPACT
Part number
90MB0JJ0-M0EAY0
EAN / UPC
886227846405, 4053162745728, 4716659846406, 5054629492284
Also known as
ASUS MAXIMUS VII IMPACT Intel® Z97 LGA 1150 (Socket H3) mini ITX

Specifications

57 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600 MHz
Maximum internal memory16 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA
RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory512 MB
Maximum resolution4096 x 2160 pixels
Number of displays supported3

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA connectors4
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
EPS power connector (8-pin)Yes
TPM connectorYes

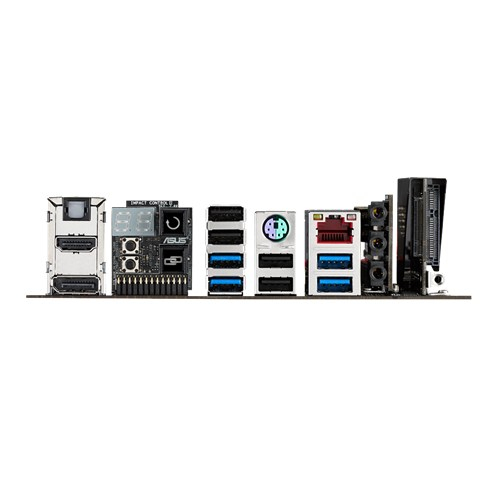

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
Headphone outputs2
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
LAN controllerIntel® I218-V
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version4.0

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z97
Power source typeATX
Windows operating systems supportedYes

Expansion slots

PCI Express x16 slots1

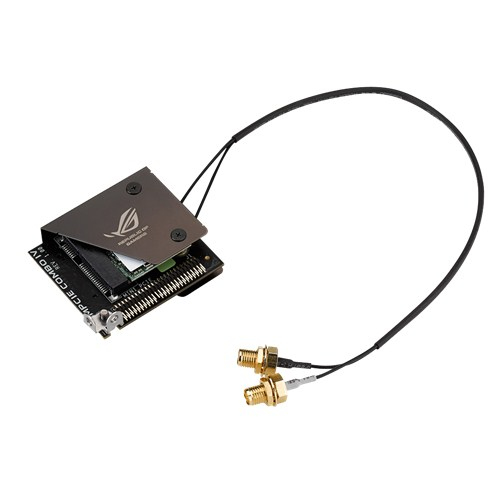

Mini PCI Express slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size64 Mbit
ACPI version5.0

Weight & dimensions

Width170 mm
Depth170 mm
