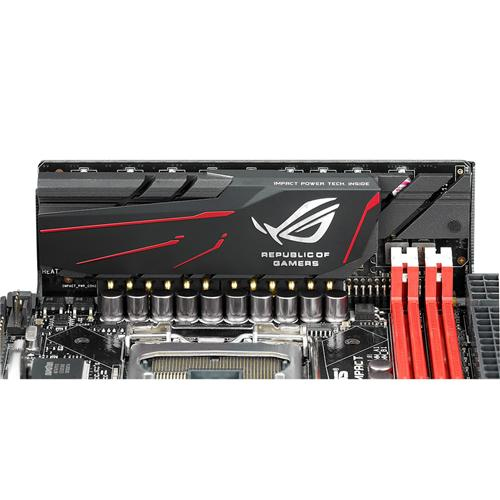

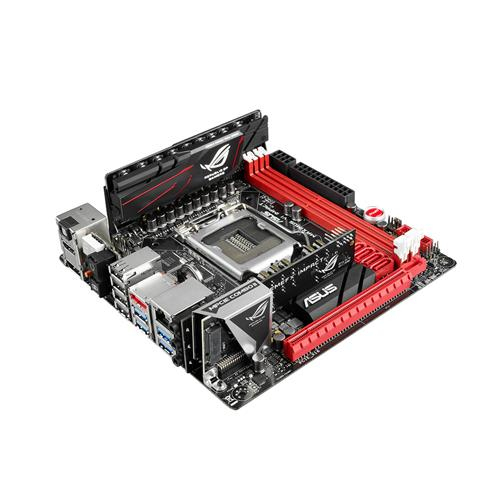

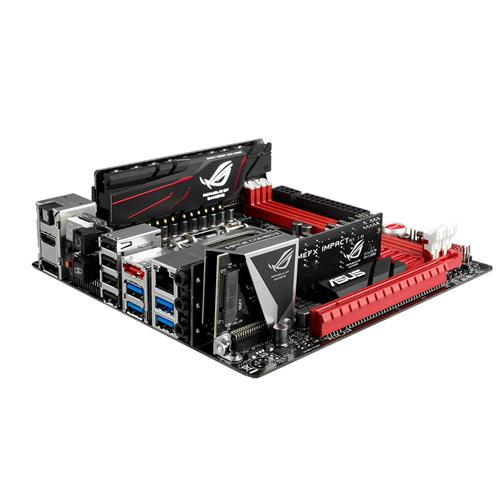

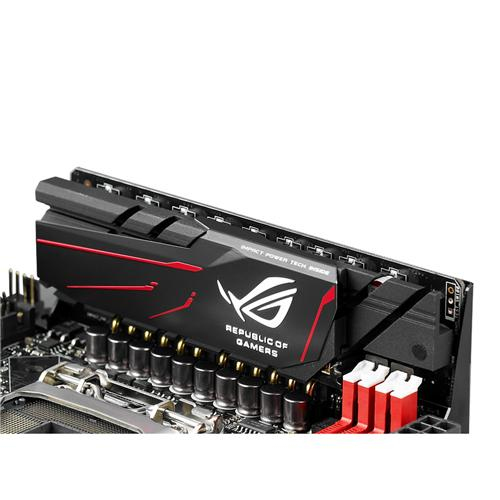

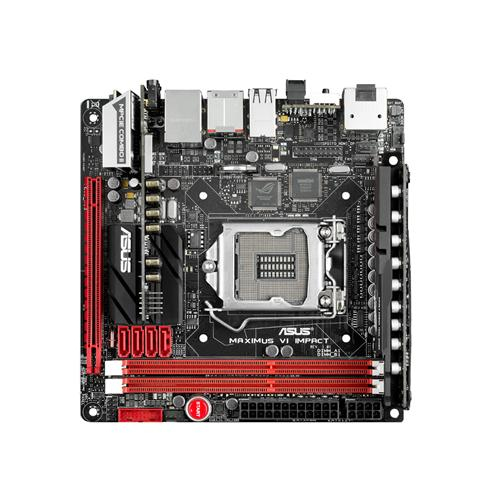

ASUS Maximus VI Impact

ASUS Maximus VI Impact

Model Maximus VI ImpactPart no. 90MB0FT0-M0MAY0EAN 8862275515908

64 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • On-board graphics cardYes
  • USB 2.0 connectors1
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
On-board graphics card
Yes
USB 2.0 connectors
1
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
Maximus VI Impact
Part numbers
90MB0FT0-M0MAY0, 90MB0FT0-M0EAY5
EAN / UPC
8862275515908, 168141505652, 886227551590, 4053162745186 +3 more
Also known as
ASUS Maximus VI Impact Intel® Z87 LGA 1150 (Socket H3) mini ITX

Specifications

64 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1800,1866,2000,2200,2400,2600,2666,2800,3000 MHz
Maximum internal memory16 GB
Supported memory module capacities8GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

On-board graphics cardYes
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
TPM connectorYes

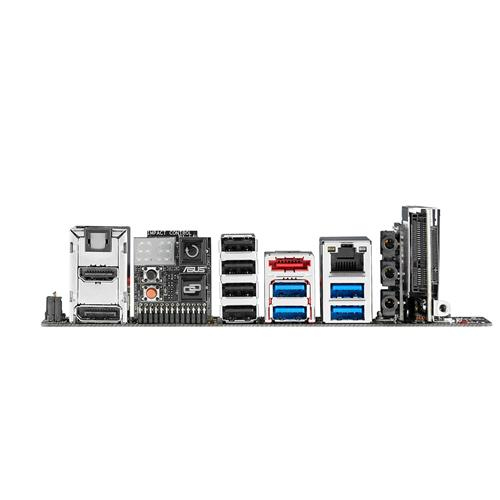

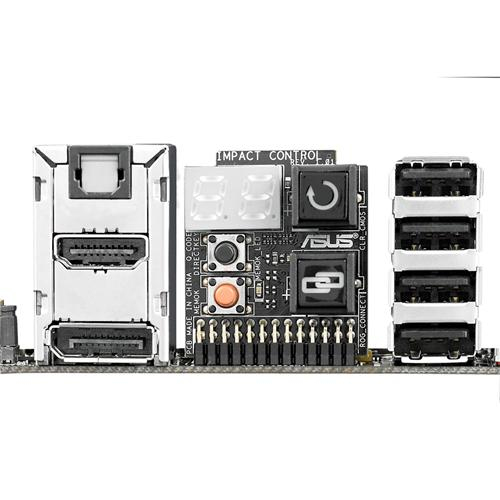

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I217-V
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version4.0

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z87

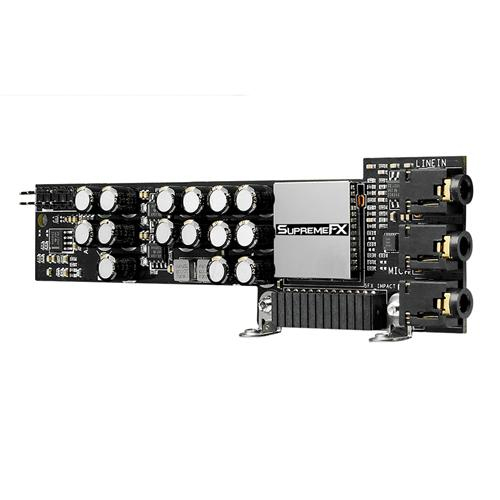

Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows

Expansion slots

PCI Express x16 (Gen 3.x) slots1
Mini PCI Express slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size64 Mbit
ACPI version5.0
Clear CMOS buttonYes

Weight & dimensions

Width170 mm
Depth170 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Quick installation guideYes
