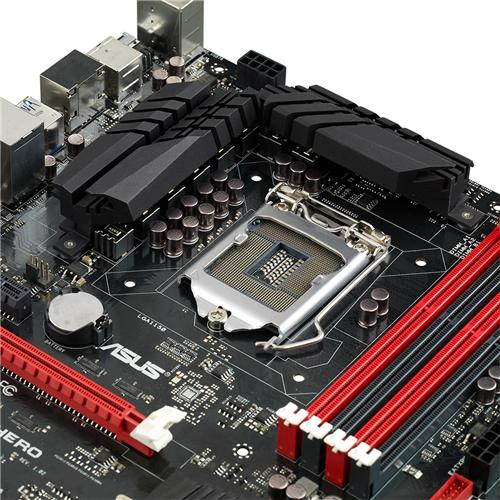

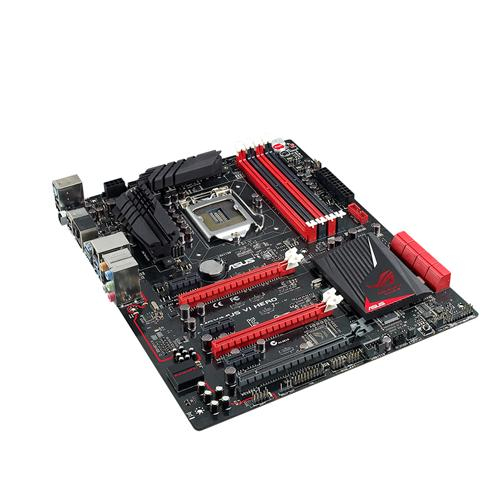

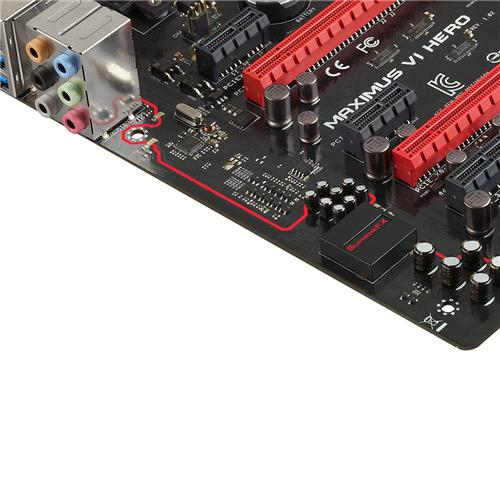

ASUS MAXIMUS VI HERO

ASUS MAXIMUS VI HERO

Model MAXIMUS VI HEROPart no. 90MB0FU0-M0EAY0EAN 8862275006970

79 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA, SATA II, SATA III
  • On-board graphics cardYes
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA, SATA II, SATA III
On-board graphics card
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
MAXIMUS VI HERO
Part numbers
90MB0FU0-M0EAY0, 90MB0FU0-M0EAY5
EAN / UPC
8862275006970, 132017758404, 886227500697, 886227553570 +7 more
Also known as
ASUS MAXIMUS VI HERO Intel® Z87 LGA 1150 (Socket H3) ATX

Specifications

79 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1
Supported processor socketsLGA 1150 (Socket H3)

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1500,1600,1666,1800,1866,1900,2000,2100,2133,2200,2250,2400,2450,2600,2666,2800 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA, SATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX, 2-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI
On-board graphics cardYes
Graphics card familyIntel
Graphics cardHD Graphics
Maximum resolution4096 x 2160 pixels
HDCPYes
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors8
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes

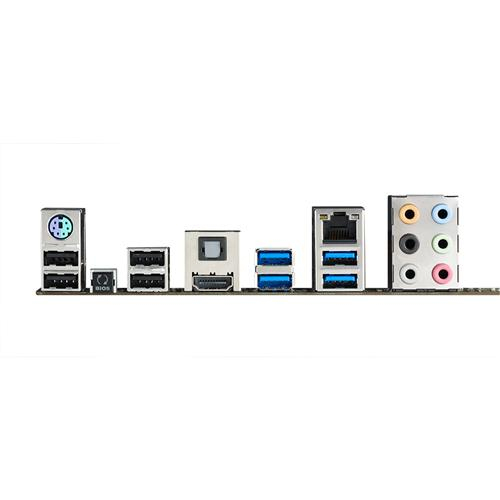

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version1.4a
DVI-D ports quantity0
Headphone outputs6
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiNo
BluetoothNo

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z87
Audio output channels7.1 channels
PC health monitoringCPU, Fan, Temperature
Cooling typePassive
Power source typeATX
Windows operating systems supportedYes

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots3
PCI Express configurations1x16, 2x8
PCI Express slots version2.0, 3.0

BIOS

BIOS typeEFI AMI
BIOS memory size64 Mbit
ACPI version2.0a
Clear CMOS jumperYes

Processor special features

Intel® High Definition Audio (Intel® HD Audio)Yes
Processor with Intel Graphics Technology requiredYes
Trusted Platform Module (TPM)Yes

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Dual Link DVIYes
BIOS switch buttonYes
Quick installation guideYes
