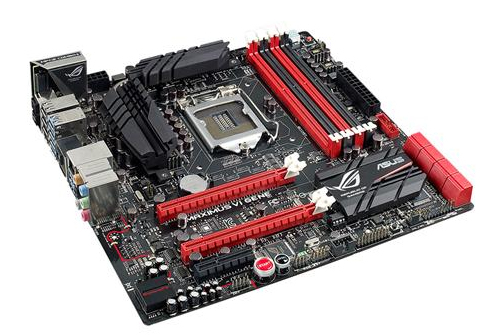

ASUS MAXIMUS VI GENE

ASUS MAXIMUS VI GENE

Model MAXIMUS VI GENEPart no. 90MB0E10-M0MAY0EAN 5054230784877

53 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Component for
PC
Brand
ASUS
Category
Motherboard
Model
MAXIMUS VI GENE
Part numbers
90MB0E10-M0MAY0, 90MB0E10-M0EAY0, 90MB0E10-M0EAY5
EAN / UPC
5054230784877, 886227508075, 4716659508076, 886227553563 +2 more
Also known as
ASUS MAXIMUS VI GENE Intel® Z87 LGA 1150 (Socket H3) mini ATX

Specifications

53 specifications in 9 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1800,1866,2000,2133,2200,2400,2600,2666,2800,3000 MHz
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA
RAID levels0, 1, 5, 10

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors0
Number of SATA II connectors0
Number of SATA connectors8
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors3
Chassis intrusion connectorYes
TPM connectorYes

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Features

Component forPC
Motherboard form factormini ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z87
Power source typeATX
Windows operating systems supportedWindows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win

Expansion slots

PCI Express x4 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots2
Mini PCI Express slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size64 Mbit
ACPI version5.0a
Clear CMOS buttonYes

Weight & dimensions

Width244 mm
Depth244 mm
