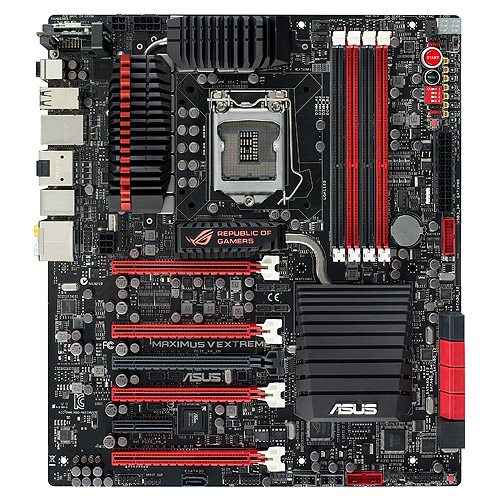

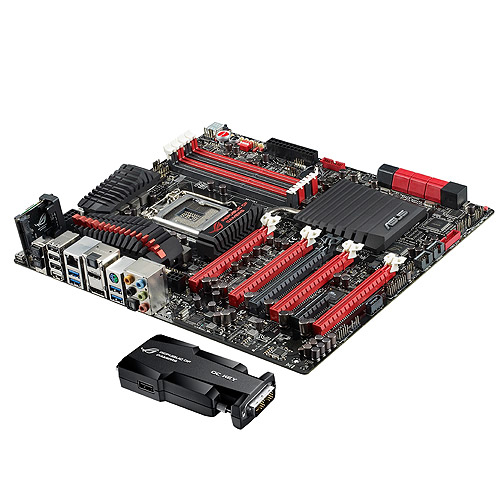

ASUS Maximus V Extreme

ASUS Maximus V Extreme

Model Maximus V ExtremePart no. 90-MIBJ00-G0EAY00ZEAN 5053460854602

92 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA, SATA II, SATA III
  • On-board graphics cardYes
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA, SATA II, SATA III
On-board graphics card
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
Maximus V Extreme
Part numbers
90-MIBJ00-G0EAY00Z, MAXIMUS V EXTREME, 90-MIBJ00-G0EAY0GZ
EAN / UPC
5053460854602, 610839187645, 6108391876458, 4719543187647
Also known as
ASUS Maximus V Extreme Intel Z77 LGA 1155 (Socket H2) Extended ATX

Specifications

92 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Maximum number of SMP processors1
System bus rate5 GT/s

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866,2133,2200,2400,2600,2666,2800 MHz
Maximum internal memory32 GB
Supported memory module capacities1GB, 2GB, 4GB, 8GB

Storage controllers

Supported storage drive interfacesSATA, SATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI, LucidLogix Virtu, Quad-GPU CrossFireX, Quad-GPU SLI
On-board graphics cardYes
Graphics card familyIntel
Graphics cardHD Graphics
Maximum resolution2560 x 1600 pixels
HDCPYes
OpenGL version4.2
DirectX version11
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors6
Number of SATA II connectors3
Number of SATA connectors10
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors7
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Yes

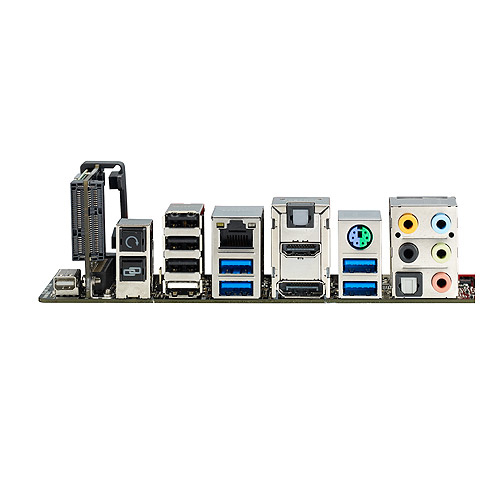

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version1.4a
DVI-D ports quantity0
DisplayPorts quantity1
Headphone outputs5
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Wake-on-LAN readyYes
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g
BluetoothYes
Bluetooth version4.0
Networking featuresGigabit LAN

Features

Component forPC
Motherboard form factorExtended ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z77
Audio chipRealtek ALC898
Audio output channels7.1 channels
PC health monitoringCPU, Fan, LED, Temperature
Cooling typePassive
Power source typeATX

Expansion slots

PCI Express x4 slots1
PCI Express x16 slots5
Mini PCI Express slots1
PCI Express configurations1x16, 2x8, 4x8
PCI Express slots version2.0, 3.0

BIOS

BIOS typeEFI AMI
BIOS memory size64 Mbit
ACPI version2.0a
Clear CMOS jumperYes
Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth272 mm

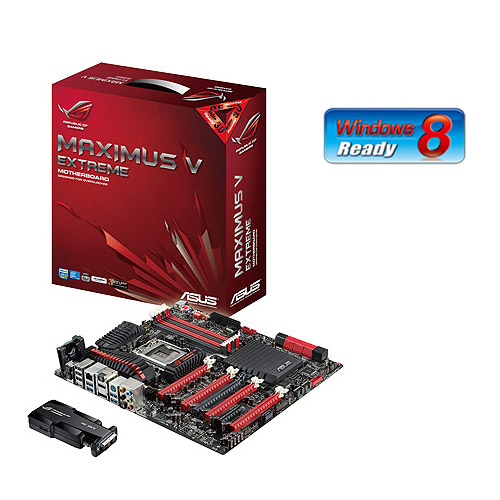

Packaging content

Cables includedSATA
Drivers includedYes

Other features

mSATA ports quantity1
Dual Link DVINo
S/PDIF in portYes
PCI Express power connectors (6-pin)1
EZ plug connectorYes
Quick installation guideYes
I/O ports1 x Thunderbolt 1 x ROG Connect On/ Off
Manageability featuresWfM2.0, DMI2.0, WOL by PME, PXE
