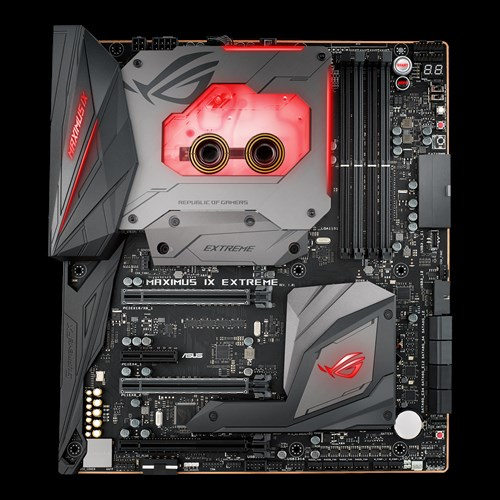

ASUS MAXIMUS IX EXTREME

ASUS MAXIMUS IX EXTREME

Model MAXIMUS IX EXTREMEPart no. 90MB0SA0-M0EAY0EAN 4058154198315

63 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors2
  • USB 2.0 ports quantity0
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Maximum graphics card memory
1024 MB
USB 2.0 connectors
2
USB 2.0 ports quantity
0
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
MAXIMUS IX EXTREME
Part number
90MB0SA0-M0EAY0
EAN / UPC
4058154198315, 4712900663716
Also known as
ASUS MAXIMUS IX EXTREME Intel® Z270 LGA 1151 (Socket H4) ATX

Specifications

63 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds2400,2666,3400,3466,3500,3600,3733,3800,3866,4000,4133 MHz
Maximum internal memory64 GB

Graphics

Maximum graphics card memory1024 MB
Parallel processing technology support2-Way SLI, 3-Way CrossFireX
Maximum resolution4096 x 2304 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors8
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Number of chassis fan connectors2
TPM connectorYes

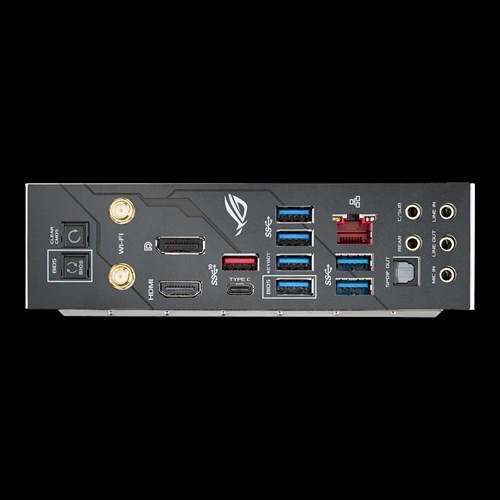

Rear panel I/O ports

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
S/PDIF out portYes

Network

Ethernet LANYes
LAN controllerIntel® I219-V
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z270
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x16 (Gen 3.x) slots3
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size32 Mbit
ACPI version5.0
Clear CMOS buttonYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel® Turbo Boost Technology2.0

Weight & dimensions

Width305 mm
Depth272 mm

Packaging content

Cables includedSATA
ManualYes

Other features

PCI Express x4 (Gen 3.x) slots1
BIOS switch buttonYes
EZ plug connectorYes
