ASUS MAXIMUS IV Extreme

ASUS MAXIMUS IV Extreme

Model MAXIMUS IV ExtremePart no. 90-MIBEC0-G0EAY0KZEAN 610839178179

52 specifications
  • Processor socketLGA 1155 (Socket H2)
  • Number of memory slots4
  • RAID levels0, 1, 5, 10
  • Parallel processing technology support3-Way SLI
  • USB 2.0 ports quantity1
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor socket
LGA 1155 (Socket H2)
Number of memory slots
4
RAID levels
0, 1, 5, 10
Parallel processing technology support
3-Way SLI
USB 2.0 ports quantity
1
Ethernet interface type
Gigabit Ethernet
Brand
ASUS
Category
Motherboard
Model
MAXIMUS IV Extreme
Part number
90-MIBEC0-G0EAY0KZ
EAN / UPC
610839178179, 610839179329, 4054318292653, 4719543178171
Also known as
ASUS MAXIMUS IV Extreme LGA 1155 (Socket H2) Extended ATX

Specifications

52 specifications in 12 groups

Processor

Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1866,2133,2600 MHz
Maximum internal memory32 GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support3-Way SLI
On-board graphics cardNo

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
Number of SATA II connectors6
Number of SATA connectors8
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors3
Chassis intrusion connectorYes

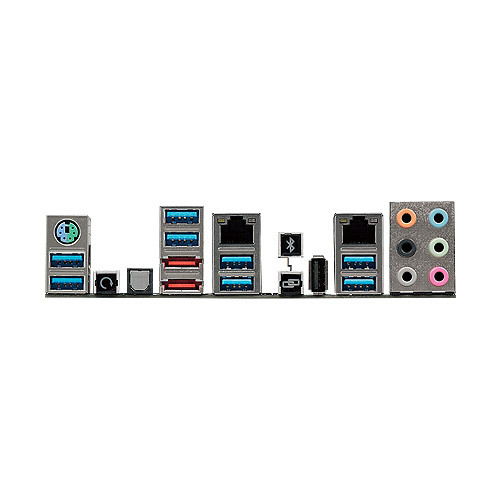

Rear panel I/O ports

USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
Ethernet LAN (RJ-45) ports2
eSATA ports quantity2
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factorExtended ATX
Audio chipRealtek ALC889
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWin

Expansion slots

PCI Express x1 slots1
PCI Express x4 slots1
PCI Express x16 slots4
PCI Express slots version2.0

BIOS

BIOS typeEFI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth269 mm

Other features

Controller 2nd interface typeJMicron 362
Controller interface typeMarvell 9182 PCIe SATA6Gb/s
Manageability featuresWfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
