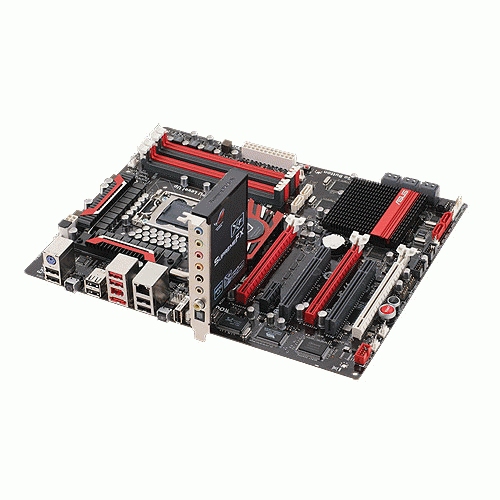

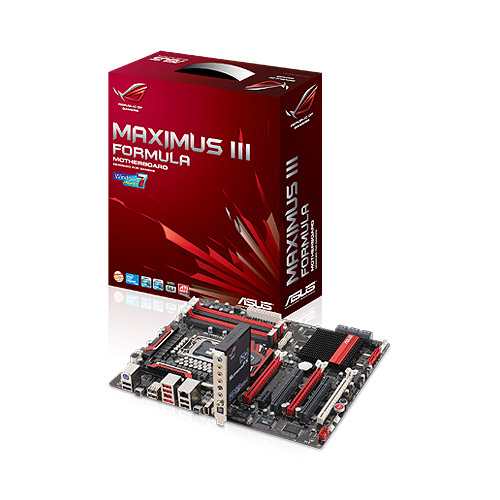

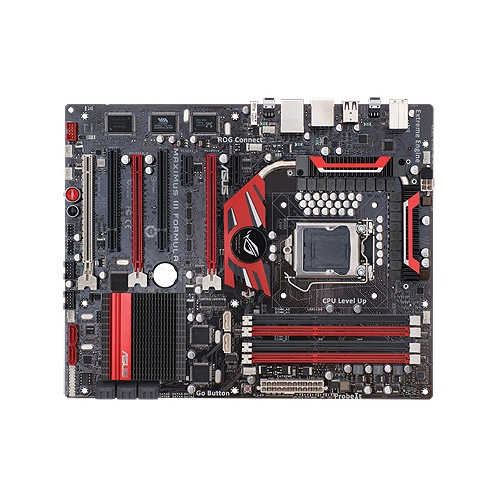

ASUS Maximus III Formula
Model Maximus III FormulaPart no. MAXIMUS III FORMULAEAN 102646137611
37 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1
- USB 2.0 connectors3
- USB 2.0 ports quantity9
- Networking features10/100/1000 Mbit
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 9
- Networking features
- 10/100/1000 Mbit
- Brand
- ASUS
- Category
- Motherboard
- Model
- Maximus III Formula
- Part numbers
- MAXIMUS III FORMULA, 90-MIBAI0-G0EAY00Z
- EAN / UPC
- 102646137611, 4719543172780
- Also known as
- ASUS Maximus III Formula Intel® P55 LGA 1156 (Socket H) ATX
Specifications
37 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 10 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 6 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 9 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® P55 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 3 |
| PCI slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
