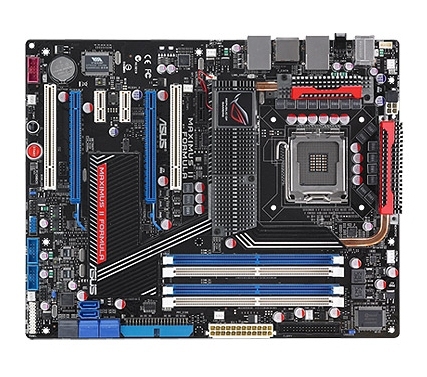

ASUS Maximus II Formula
Model Maximus II FormulaPart no. 90-MIB530-G0UAY00ZEAN 4719543163054
26 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 10
- USB 2.0 connectors6
- Motherboard form factorATX
- BIOS memory size16 Mbit
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 10
- USB 2.0 connectors
- 6
- Motherboard form factor
- ATX
- BIOS memory size
- 16 Mbit
- Brand
- ASUS
- Category
- Motherboard
- Model
- Maximus II Formula
- Part numbers
- 90-MIB530-G0UAY00Z, 90-MIB530-G0AAY00Z, MAXIMUS II FORMULA, 90-MIB530-G0EAY00Z
- EAN / UPC
- 4719543163054, 610839163052
- Also known as
- ASUS Maximus II Formula LGA 775 (Socket T) ATX
Specifications
26 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 6 |
| CD/AUX audio in | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| eSATA ports quantity | 1 |
| Firewire (IEEE 1394) ports | 2 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD2000B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x PCIe 2.0 x16 3 x PCIe x1 2 x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
Other features
| Specification | Value |
|---|---|
| Controller interface type | Marvell 88SE6121 |
