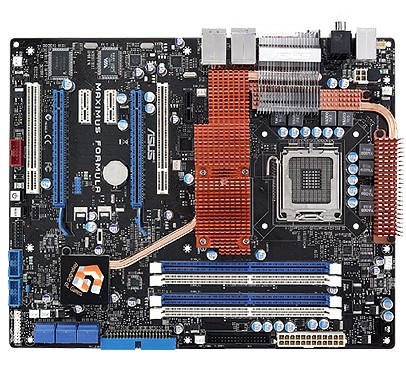

ASUS Maximus Formula
Model Maximus FormulaPart no. MAXIMUS FORMULAEAN 4719543156384
41 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 10
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- Networking featuresDual Gigabit Ethernet
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 10
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Networking features
- Dual Gigabit Ethernet
- Brand
- ASUS
- Category
- Motherboard
- Model
- Maximus Formula
- Part numbers
- MAXIMUS FORMULA, 90-MBB7M5-G0EAY00Z, 90MBB7M5G0AAY00Z
- EAN / UPC
- 4719543156384, 610839156382
- Also known as
- ASUS Maximus Formula LGA 775 (Socket T) ATX
Specifications
41 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Dual Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD1988B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 2000/XP/Vista |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x PCIe 2.0 x16 3 x PCIe x1 2 x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | S.T.A.L.K.E.R. ASUS PC Probe II ASUS AI Suite 3DMark '06 AE Kaspersky Anti-Virus |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100/66/33 |
| Controller interface type | Serial ATA II |
| Floppy disk drive connector | Yes |
| Special features | ASUS Q-Connector ASUS Q-Fan 2 ASUS EZ Flash 2 ASUS CrashFree BIOS 3 ASUS MyLogo3 |
| Manageability features | WOL @ PME, WOR @ PME, PXE |
