ASUS M5A99FX PRO R2.0

ASUS M5A99FX PRO R2.0

Model M5A99FX PRO R2.0Part no. 90-MIBIT0-G0AAY0VZEAN 7734322923596

69 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • On-board graphics cardNo
  • USB 2.0 connectors3
  • USB 2.0 ports quantity8
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
On-board graphics card
No
USB 2.0 connectors
3
USB 2.0 ports quantity
8
Brand
ASUS
Category
Motherboard
Model
M5A99FX PRO R2.0
Part numbers
90-MIBIT0-G0AAY0VZ, 90-MIBIT0-G0EAY0VZ
EAN / UPC
7734322923596, 191120014227, 610839187430, 662705115986 +23 more
Also known as
ASUS M5A99FX PRO R2.0 AMD 990FX Socket AM3+ ATX

Specifications

69 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3+
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom II X8
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1066,1333,1600,1866 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III

Graphics

Parallel processing technology supportQuad-GPU CrossFireX, Quad-GPU SLI
On-board graphics cardNo
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors7
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors3
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Number of COM connectors1
TPM connectorYes

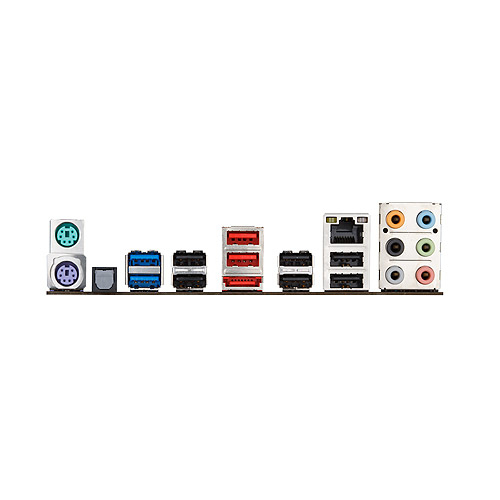

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity2
Microphone inYes
Digital audio optical out1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111F

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 990FX
Motherboard southbridgeAMD SB950
Audio chipRealtek ALC892
Audio output channels7.1 channels
Cooling typePassive
Power source typeATX
Compatible operating systemsWindows 7 Windows 8

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots4
PCI Express configurations1x1, 2x4, 2x16
PCI Express slots version2.0
PCI slots1

BIOS

BIOS typeUEFI
BIOS memory size64 Mbit
ACPI version2.0a
Clear CMOS jumperYes

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedCrossFire, SATA
Drivers includedYes
Trial softwareAntivirus
Bundled softwareASUS Utilities ASUS Update

Other features

Controller 2nd interface typeASMedia
Controller interface typeAMD SB950
Audio output6
PCI Express slots quantity5
Quick installation guideYes
