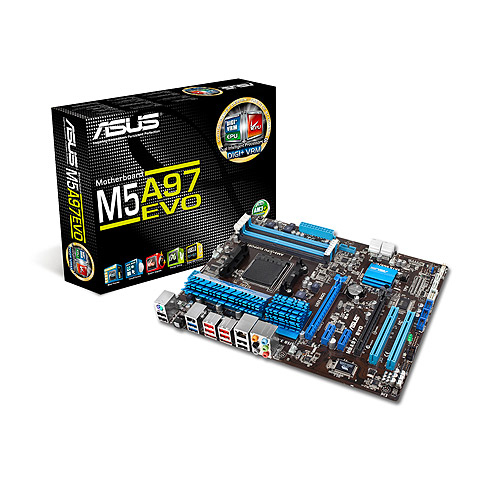

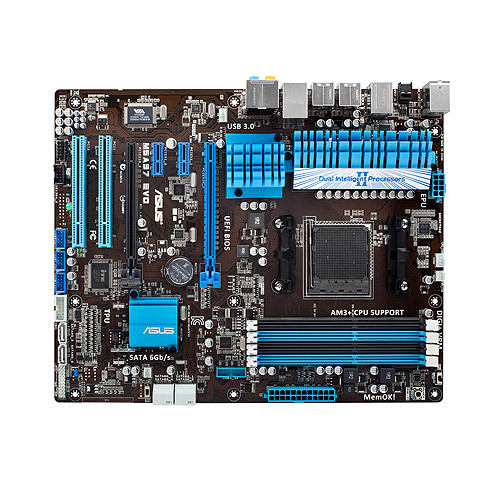

ASUS M5A97 EVO

ASUS M5A97 EVO

Model M5A97 EVOEAN 610839181216

58 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • Supported storage drive interfacesSATA III
  • Parallel processing technology supportQuad-GPU CrossFireX
  • USB 2.0 connectors3
  • USB 2.0 ports quantity8
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
Supported storage drive interfaces
SATA III
Parallel processing technology support
Quad-GPU CrossFireX
USB 2.0 connectors
3
USB 2.0 ports quantity
8
Brand
ASUS
Category
Motherboard
Model
M5A97 EVO
Part numbers
M5A97 EVO, 90-MIBFR0-G0EAY00Z, 90-MIBFR0-G0EAY0MZ
EAN / UPC
610839181216
Also known as
ASUS M5A97 EVO motherboard AMD 970 Socket AM3+ ATX

Specifications

58 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3+
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6
System bus rate4.8 GT/s

Memory

Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1066,1333,1600,1800,1866 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportQuad-GPU CrossFireX
On-board graphics cardNo

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
Number of SATA II connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Number of IEEE1394 connectors1

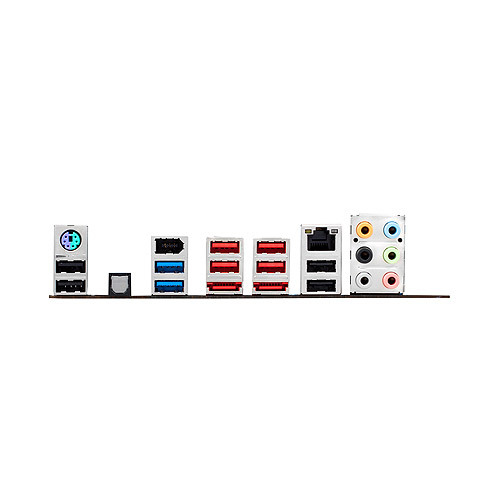

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity2
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs6

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 970
Motherboard southbridgeAMD SB950
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots2
PCI Express slots version2.0
PCI slots2

BIOS

BIOS typeEFI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth244 mm

Other features

Manageability featuresWfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
