ASUS M5A88M AMD 880G Socket AM3 ATX
Model M5A88MPart no. M5A88-MEAN 610839180820
58 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- RAID levels0, 1, 5, 10
- Maximum graphics card memory1024 MB
- USB 2.0 connectors4
- LAN controllerRealtek RTL8111E
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- RAID levels
- 0, 1, 5, 10
- Maximum graphics card memory
- 1024 MB
- USB 2.0 connectors
- 4
- LAN controller
- Realtek RTL8111E
- Brand
- ASUS
- Category
- Motherboard
- Model
- M5A88M
- Part number
- M5A88-M
- EAN / UPC
- 610839180820, 4719543180822
- Also known as
- ASUS M5A88M AMD 880G Socket AM3 ATX
Specifications
58 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
| Compatible processor series | AMD Phenom II Dual-Core Mobile |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1600,1866,2200 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Graphics card family | ATI |
| Graphics card | Radeon HD 4250 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |
| Parallel connector | Yes |

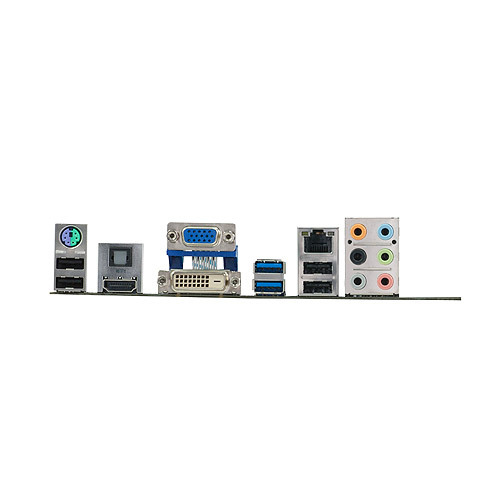

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 1 |
| Headphone outputs | 6 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD 880G |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Overclocking features | Overclocking Protection: - ASUS C.P.R.(CPU Parameter Recall) |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 3.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 24.4 mm |
| Depth | 24.4 mm |
Packaging content
| Specification | Value |
|---|---|

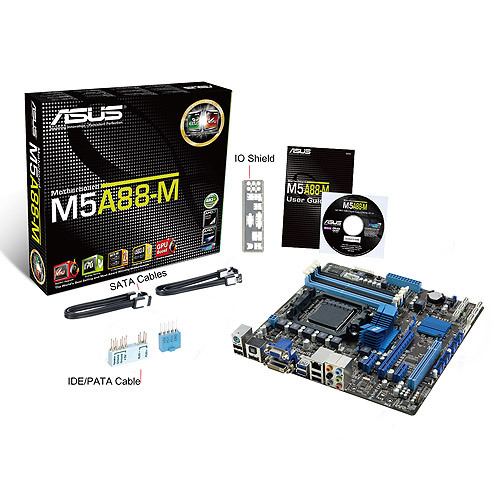

| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| Supported RDIMM clock speeds | 1333 MHz |
| Graphics controller | HDMI, DVI, RGB |
| Special features | ASUS Xtreme Design: ASUS Hybrid Processor - TurboV EVO: - Turbo Unlocker - Auto Tuning - TurboV - CPU Level Up - GPU Boost ASUS Hybrid Switch: - Core Unlocker ASUS Power Design: - ASUS EPU ASUS Exclusive Features: - MemOK! - Anti-Surge ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink |
| Manageability features | WOL by PME, WOR by PME, WOR by Ring, PXE |
