ASUS M5A88-V EVO

ASUS M5A88-V EVO

Model M5A88-V EVOPart no. 90-MIBFZ0-G0EAY0GZEAN 3610170562528

59 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0, 1, 5, 10, JBOD
  • Maximum graphics card memory1024 MB
  • Ethernet interface typeGigabit Ethernet
  • Component forPC
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0, 1, 5, 10, JBOD
Maximum graphics card memory
1024 MB
Ethernet interface type
Gigabit Ethernet
Component for
PC
Brand
ASUS
Category
Motherboard
Model
M5A88-V EVO
Part numbers
90-MIBFZ0-G0EAY0GZ, M5A88-V EVO
EAN / UPC
3610170562528, 4719543180631, 610839180639
Also known as
ASUS M5A88-V EVO AMD 880G Socket AM3 ATX

Specifications

59 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X6
Maximum number of SMP processors1

Memory

Number of memory slots4
Memory channelsDual-channel
Supported memory clock speeds1066,1333,1600,1866,2000 MHz
Maximum internal memory16 GB

Storage controllers

RAID levels0, 1, 5, 10, JBOD

Graphics

Maximum graphics card memory1024 MB
Parallel processing technology supportHybrid CrossFireX
On-board graphics cardYes
Graphics card familyAMD
Graphics cardRadeon HD 4250

Internal I/O

USB 2.0 connectors4
Number of SATA III connectors5
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Number of COM connectors1
Number of IEEE1394 connectors1

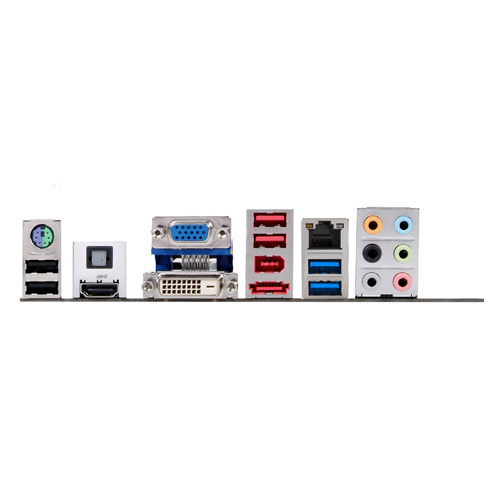

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs5
Microphone inYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factorATX
Motherboard chipsetAMD 880G
Motherboard southbridgeAMD SB850
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots2
PCI Express slots version2.0
PCI slots3

BIOS

BIOS typeAMI
BIOS memory size16 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth244 mm

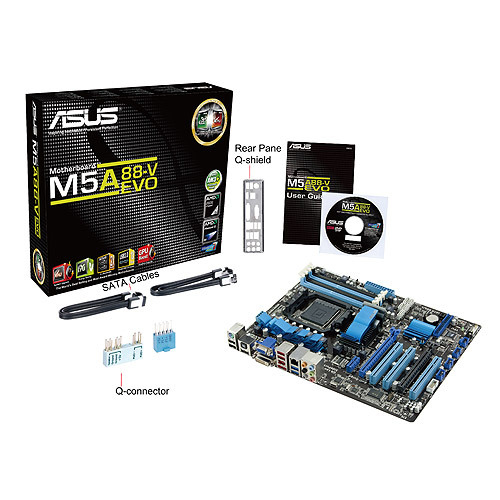

Packaging content

Drivers includedYes
Trial softwareAntivirus
Bundled softwareASUS Update ASUS utilities

Other features

Quick installation guideYes
