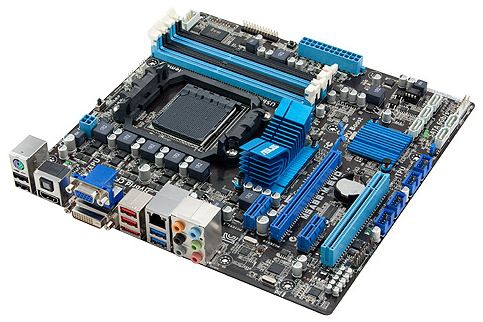

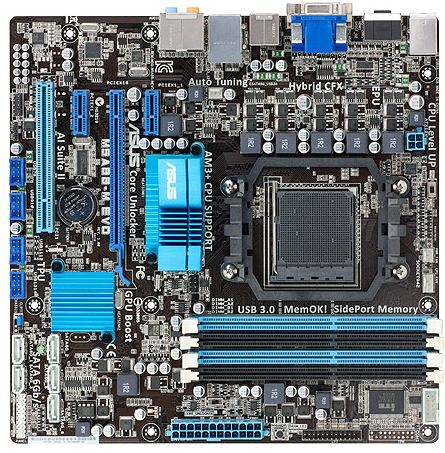

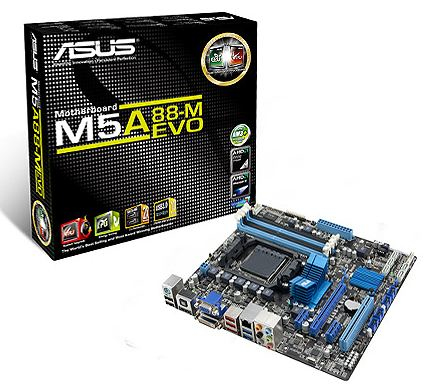

ASUS M5A88-M EVO

ASUS M5A88-M EVO

Model M5A88-M EVOEAN 4719543180860

56 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0, 1, 5, 10, JBOD
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors8
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0, 1, 5, 10, JBOD
Maximum graphics card memory
1024 MB
USB 2.0 connectors
8
Ethernet interface type
Gigabit Ethernet
Brand
ASUS
Category
Motherboard
Model
M5A88-M EVO
Part numbers
M5A88-M EVO, 90-MIBG10-G0EAY00Z
EAN / UPC
4719543180860
Also known as
ASUS M5A88-M EVO motherboard AMD 880G Socket AM3

Specifications

56 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom II Dual-Core Mobile

Memory

Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB

Storage controllers

RAID levels0, 1, 5, 10, JBOD

Graphics

Maximum graphics card memory1024 MB
Parallel processing technology supportHybrid CrossFireX
On-board graphics cardYes
Graphics card familyAMD
Graphics cardRadeon HD 4250

Internal I/O

USB 2.0 connectors8
Number of SATA connectors5
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Peripheral (Molex) power connectors (4-pin)1
Number of COM connectors1

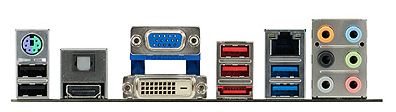

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Networking features10/100/1000 Mbit/s

Features

Component forPC
Motherboard chipsetAMD 880G
Motherboard southbridgeAMD SB850
Audio chipRealtek ALC892
Power source typeATX
Compatible operating systemsWindows

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI Express slots version2.0
PCI slots1

BIOS

BIOS typeAMI
BIOS memory size16 Mbit
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Cables includedSATA
Drivers includedYes
Bundled softwareAOD OEM
