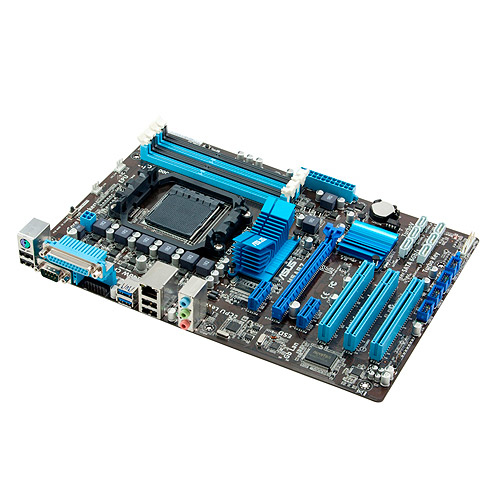

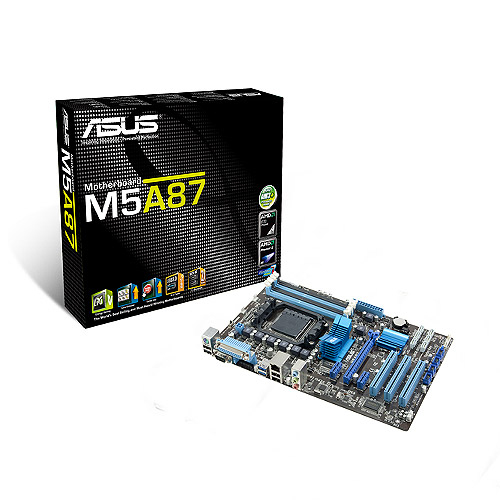

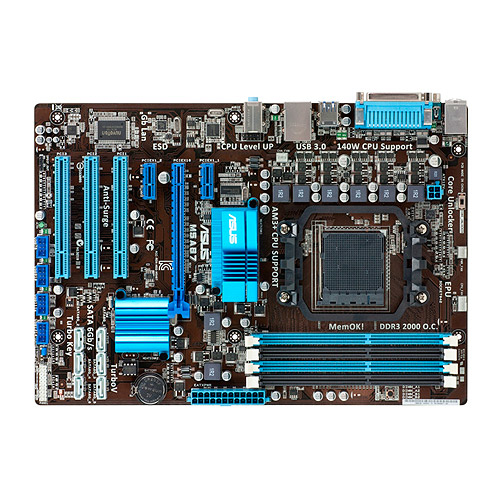

ASUS M5A87 AMD 870 (RX881) Socket AM3 ATX

ASUS M5A87 AMD 870 (RX881) Socket AM3 ATX

Model M5A87Part no. M5A87 AMDEAN 610839180424

56 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors4
  • Ethernet interface typeFast Ethernet, Gigabit Ethernet
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
Not supported
USB 2.0 connectors
4
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Brand
ASUS
Category
Motherboard
Model
M5A87
Part numbers
M5A87 AMD, 90-MIBFY0-G0EAY0GZ
EAN / UPC
610839180424, 3610170566120, 4719543180426
Also known as
ASUS M5A87 AMD 870 (RX881) Socket AM3 ATX

Specifications

56 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom II X8
System bus rate5.2 GT/s

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1066,1333,1600,2000 MHz
Maximum internal memory16 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10, JBOD

Graphics

Parallel processing technology supportNot supported

Internal I/O

USB 2.0 connectors4
Number of SATA II connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes

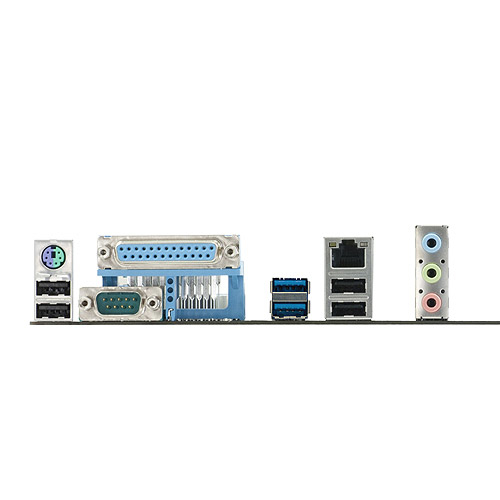

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs3
Microphone inYes
COM ports quantity1
Parallel ports quantity1

Network

Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 870 (RX881)
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI Express slots version2.0
PCI slots3

BIOS

BIOS typeAMI
BIOS memory size16 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth213 mm

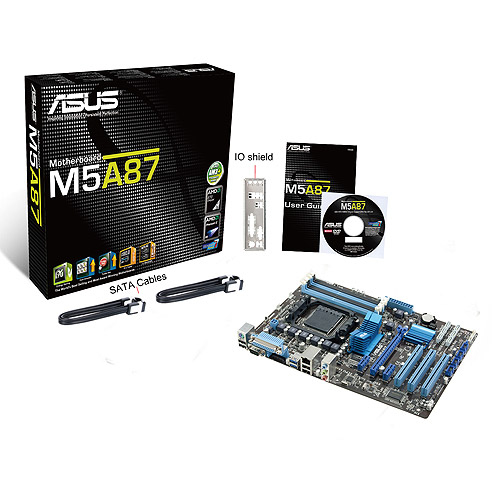

Packaging content

Drivers includedYes

Other features

Controller interface typeAMD SB850
Quick installation guideYes
