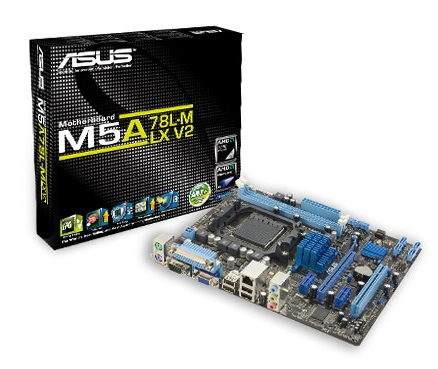

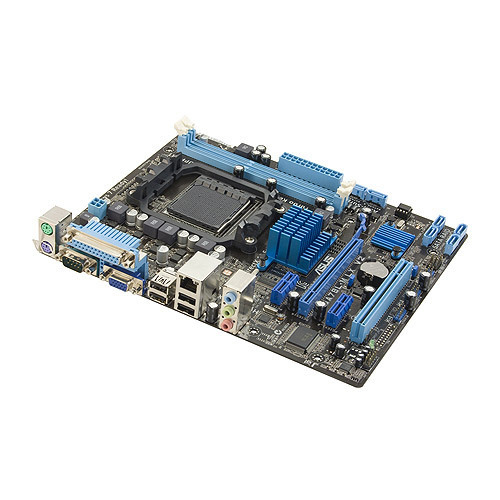

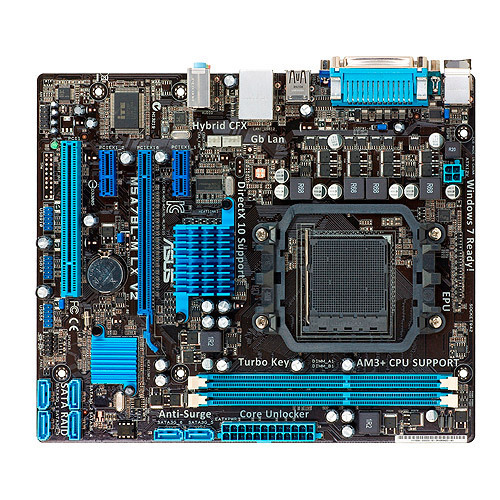

ASUS M5A78L-M LX V2
Model M5A78L-M LX V2Part no. 90-MIBHH0-G0EAY0GZ
72 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II
- Parallel processing technology supportHybrid CrossFireX
- USB 2.0 connectors3
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II
- Parallel processing technology support
- Hybrid CrossFireX
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- M5A78L-M LX V2
- Part numbers
- 90-MIBHH0-G0EAY0GZ, 90-MIBHH0-G0AEY0GZ
- Also known as
- ASUS M5A78L-M LX V2 AMD 760G Socket AM3+ micro ATX
Specifications
72 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3+ |
| Compatible processor series | AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6 |
| System bus rate | 5.2 GT/s |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1866 MHz |
| Maximum internal memory | 8 GB |
| Supported memory module capacities | 4GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
| RAID levels | 0, 1, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Hybrid CrossFireX |
| On-board graphics card | Yes |
| Graphics card family | ATI |
| Graphics card | Radeon HD 3000 |
| Maximum resolution | 2560 x 1440 pixels |
| DirectX version | 10.0 |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 6 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | No |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |

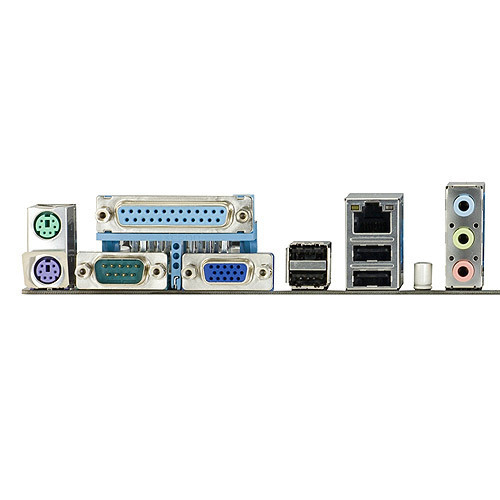

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD 760G |
| Motherboard southbridge | AMD SB710 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Cooling type | Active |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 2.0a |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 203 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller interface type | SB710 |
What people say
Reviews & ratings
ASUS M5A78L-M LX V2
No reviews yet
Be the first to tell others how ASUS M5A78L-M LX V2 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS M5A78L-M LX V2

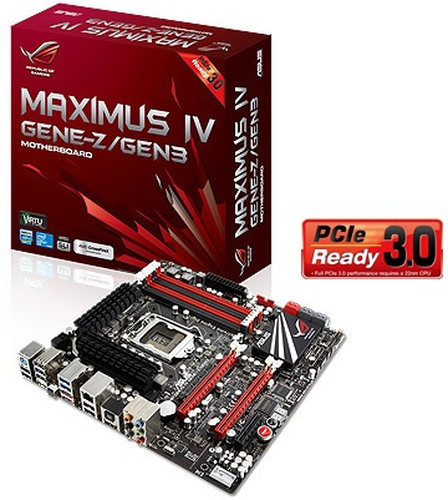

All motherboard comparisons- ASUS M5A78L-M LX V2 vsASUS Maximus IV GENE-Z/GEN3Compare specs

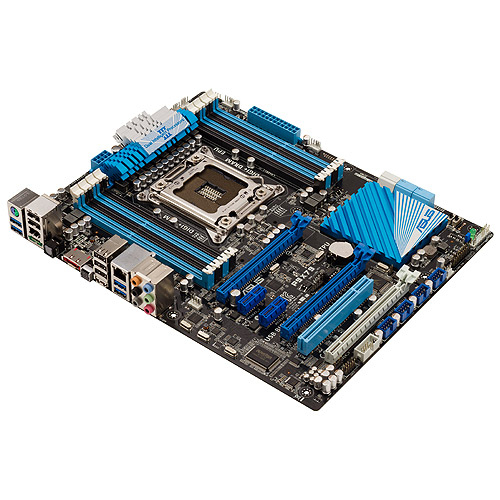

- ASUS M5A78L-M LX V2 vsASUS P9X79 LGA 2011 (Socket R) ATXCompare specs
- ASUS M5A78L-M LX V2 vsASUS F1A55-M LXCompare specs
- ASUS M5A78L-M LX V2 vsASUS M5A78L-M LX PLUSCompare specs
- ASUS M5A78L-M LX V2 vsGIGABYTE GA-X79-UD3 motherboard LGA 2011 (Socket R) ATXCompare specs

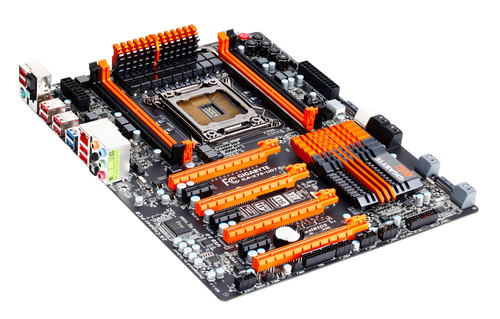

- ASUS M5A78L-M LX V2 vsGIGABYTE GA-X79-UD7 motherboard LGA 2011 (Socket R) XL-ATXCompare specs
