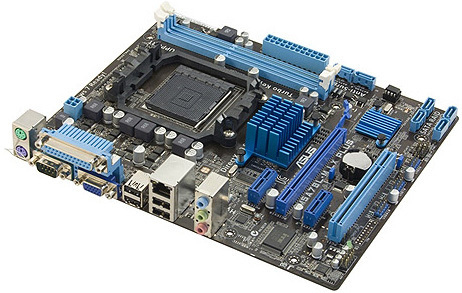

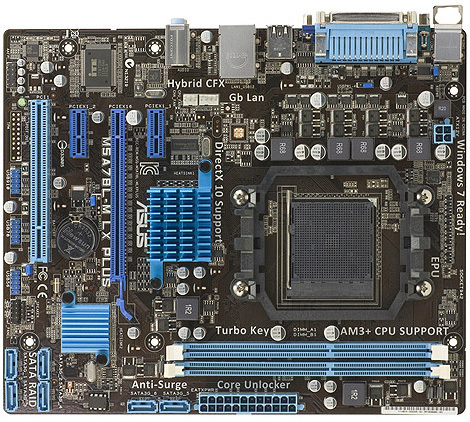

ASUS M5A78L-M LX PLUS

ASUS M5A78L-M LX PLUS

Model M5A78L-M LX PLUSEAN 320127534715

69 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Maximum graphics card memory
1024 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
M5A78L-M LX PLUS
Part number
M5A78L-M LX PLUS
EAN / UPC
320127534715, 610839182428, 763615918299, 6108391824282
Also known as
ASUS M5A78L-M LX PLUS motherboard AMD 760G Socket AM3+ micro ATX

Specifications

69 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3+
Compatible processor seriesAMD Phenom FX, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Maximum number of SMP processors1
System bus rate5.2 GT/s
Processor thermal power (max)125 W

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1066,1333,1600,1866 MHz
Maximum internal memory16 GB
Supported memory module capacities1GB, 2GB, 4GB, 8GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II
RAID levels0, 1, 10, JBOD

Graphics

Maximum graphics card memory1024 MB
Parallel processing technology supportHybrid CrossFireX
On-board graphics cardNo
Graphics card familyATI
Graphics cardRadeon HD 3000
Maximum resolution2560 x 1440 pixels
DirectX version10

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes

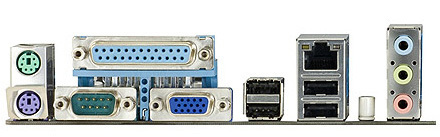

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
COM ports quantity1
Parallel ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wake-on-LAN readyYes

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 760G
Motherboard southbridgeAMD SB710
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI Express slots version2.0
PCI slots1

BIOS

BIOS typeAMI
BIOS memory size16 Mbit
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth203 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Quick installation guideYes
