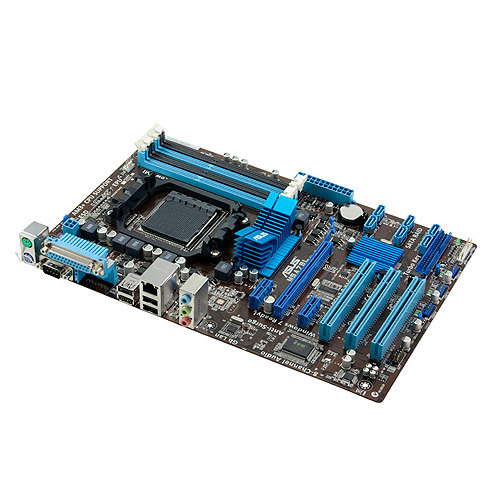

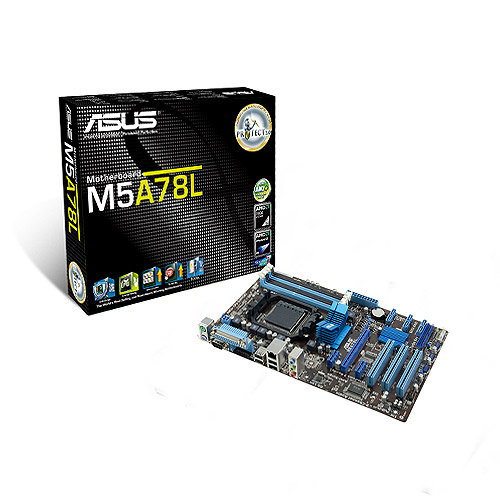

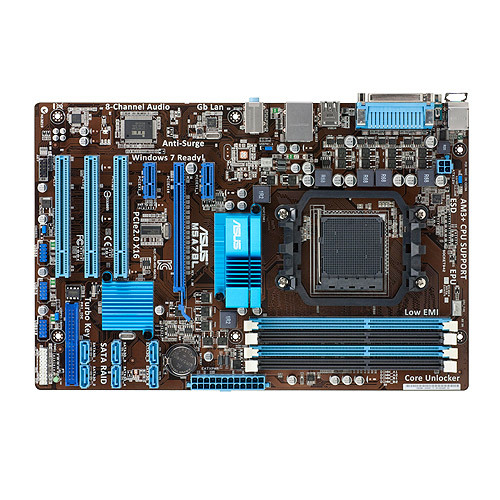

ASUS M5A78L AMD 760G Socket AM3 ATX

ASUS M5A78L AMD 760G Socket AM3 ATX

Model M5A78LPart no. 90-MIBFU0-G0EAY00ZEAN 610839180288

53 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0, 1, 10, JBOD
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors3
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0, 1, 10, JBOD
Parallel processing technology support
Not supported
USB 2.0 connectors
3
Ethernet interface type
Gigabit Ethernet
Brand
ASUS
Category
Motherboard
Model
M5A78L
Part numbers
90-MIBFU0-G0EAY00Z, 90-MIBFU0-G0EAY0GZ
EAN / UPC
610839180288
Also known as
ASUS M5A78L AMD 760G Socket AM3 ATX

Specifications

53 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6

Memory

Number of memory slots4
Memory channelsDual-channel
Supported memory clock speeds1066,1333,1600,1800,1866,2000 MHz
Maximum internal memory16 GB

Storage controllers

RAID levels0, 1, 10, JBOD

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors3
Number of SATA II connectors6
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes

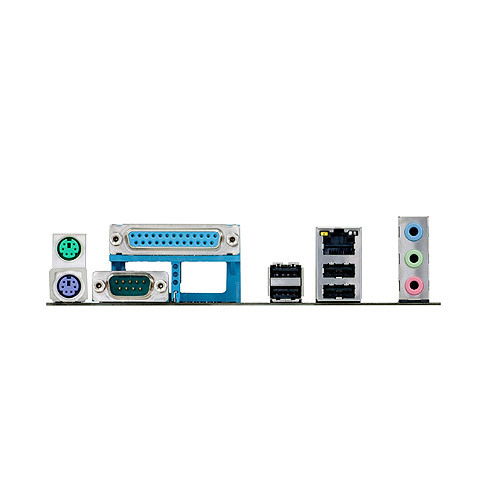

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs2
Microphone inYes
Parallel ports quantity1
Serial ports quantity1

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factorATX
Motherboard chipsetAMD 760G
Motherboard southbridgeAMD SB710
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI slots3

BIOS

BIOS typeAMI
BIOS memory size16 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth203 mm

Packaging content

Drivers includedYes
Trial softwareAntivirus
Bundled softwareASUS PC Probe II ASUS Update

Other features

Quick installation guideYes
